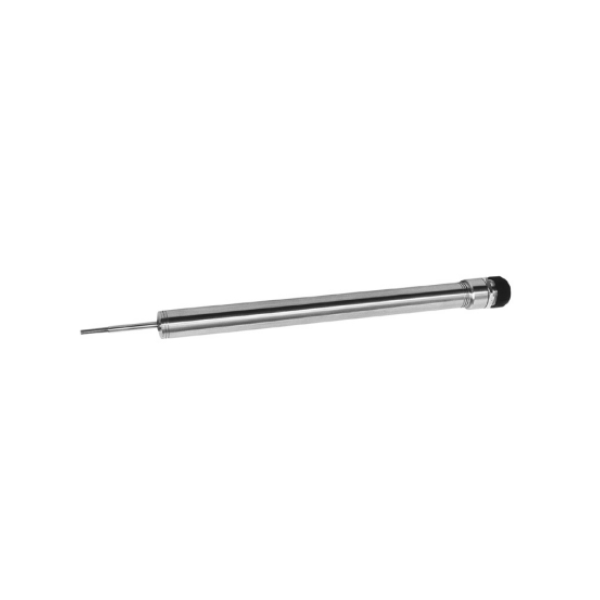

Model DW7S Honeywell LVDT

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model DW7S
Stroke range	±12,7 mm to 76,2 mm [±0.5 in to 3 in]
Non-linearity (max.)	±0.25 % full scale
Non-repeatability (max.)	<20 microinches
Temperature, operating	-40 °C to 70 °C [-40 °F to 158 °F]
Temperature effect, zero (max.)	0.005 % full scale/°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model DW7S Honeywell LVDT

DESCRIPTION
Model DW7S submersible displacement transducer is often ideal
for drilling, mining, and hydraulic engineering applications which
require a displacement transducer with a stainless steel, waterproof construction. This model may be used as direct measuring
linear displacement devices or positional feedback elements
in dynamic systems. They are suitable for submersion in fresh
water and some corrosive fluids for long periods. The captive
guided spring return armature is fitted with a ball-ended probe.
