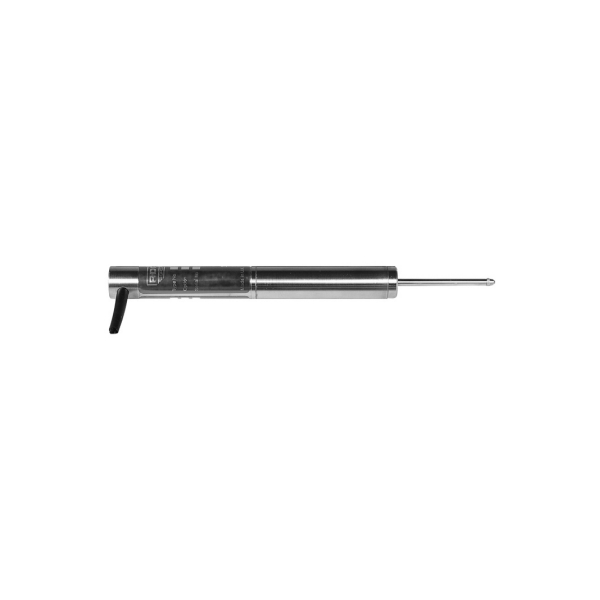

Model JEC-C Honeywell LVDT

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model JEC-C
Stroke range	±12,7 mm to 470 mm [±0.5 in to 18.5 in]
Non-linearity (max.)	±0.25 % full scale
Output load (min.)	2000 ohm with three-wire supply; 20000 ohm with floating supply
Output impedance	2 ohm

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model JEC-C Honeywell LVDT

DESCRIPTION

Model JEC-C (captive guided armature) dc-dc long stroke displacement transducer utilizes an improved internal circuit which
incorporates both reverse polarity protection and voltage regulation. These features eliminate the danger of permanent damage
if supply voltage is accidentally reversed and ensure that sensitivity will remain constant over large variations in supply voltage.
This model requires no further conditioning, thus permitting easy
operation. Stroke ranges from ±0.5 in to ±18.5 in are available.
