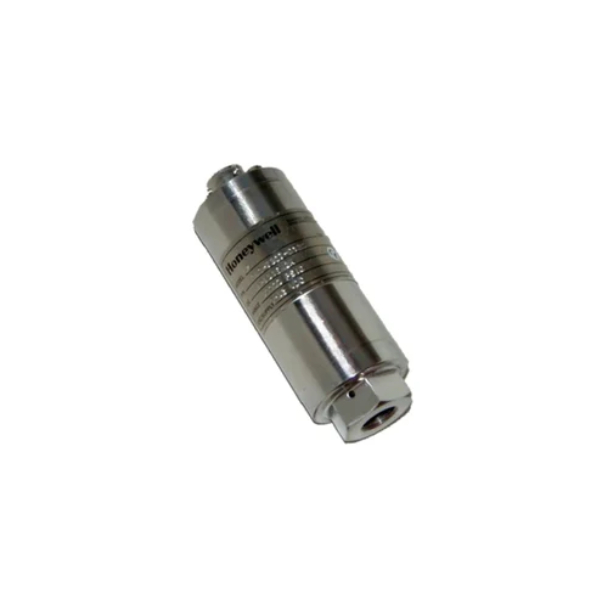

Model HP Honeywell Pressure Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model HP
Insulation resistance	5000 mOhm @ 50 Vdc
Accuracy	±0.50 % full scale
Output	1 mV/V
Temperature effect, span	0.005 % reading/°F
Temperature (Compensated)	15 °C to 71 °C [60 °F to 160 °F]
Temperature effect, zero	0.005 % full scale/°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model HP Honeywell Pressure Transducers

DESCRIPTION

The high pressure transducer Model HP is designed to accept
extreme pressure ranges of 50000 psi to 100,000 psi. Equipped
with a special safety blow out plug in its outer case, this transducer will allow the excess pressure to gradually leak out should
the pressure element rupture. These transducers operate in a
wide temperature range from -65 °F through 250 °F. Temperature
effects on span and zero are 0.005 % each and a full scale accuracy of 0.5 % is achieved.
