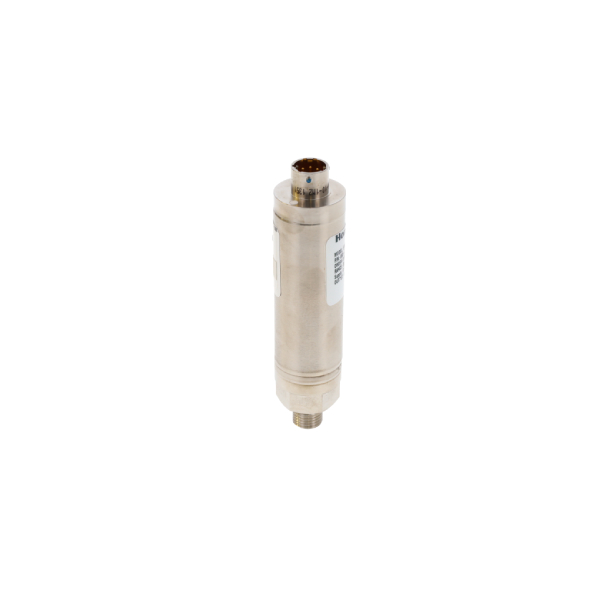

060-CS96661889719 Honeywell Pressure Transducer

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	060-CS96661889719
Amplified (4 mA to 20 mA; ±5 Vdc)	9 Vdc to 28 Vdc
Amplified (±10 Vdc)	15 Vdc to 28 Vdc
Temperature, operating	-40 °C to 50 °C [-40 °F to 122 °F]
Unamplified (mV/V)	10 Vdc
Resolution	Infinite

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

060-CS96661889719 Honeywell Pressure Transducer

DESCRIPTION
The FP2000 series is a configurable differential pressure transducer which allows the customer to select the configuration which best fits the needs of the application. Choose from multiple accuracies, outputs, pressure ports, electrical terminations, and pressure ranges.
The FP2000 is available with differential wet/wet and wet/dry configurations.

DIFFERENTIATION
• Welded stainless steel construction
• Customized specifications available
• Configurable platform enables
a sensor to be built to customer
requirements
• Bi-directional functionality of pressure
measurement
• Optional bi-directional calibration
available
• Small package size
