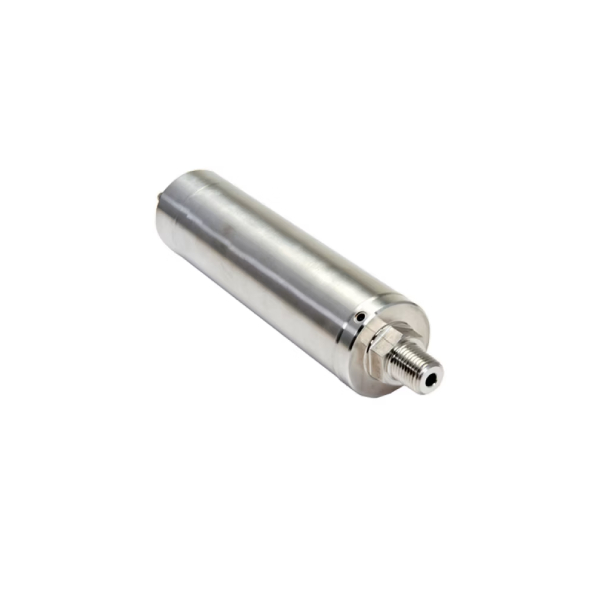

Model DS Honeywell Pressure Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model DS
Pressure Range	5, 15, 30, 50, 100, 150, 250, 500, 750, 1000, 2000, 2500 psig/a
Accuracy	0.1 % typical accuracy over the compensated temperature range
Output resolution	1.22 mV/bit (12 bits on 0 Vdc to 5 Vdc)
Temperature (Operating)	-40 °C to 82 °C [-40 °F to 180 °F]
Temperature (Compensated)	4 °C to 60 °C [40 °F to 140 °F]
Output response, digital	> 300 readings/second at 115 k baud

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model DS Honeywell Pressure Transducers

DESCRIPTION

The Model DS offers the “smart” combination of micro processor based, internal signal conditioning and micromachined silicon pressure sensor technology to provide digital communications directly to your PC with superior accuracy and stability. With <1 ms step response on the analog output and >300 readings/ second on the digital output, the Model DS provides the speed required for dynamic automotive or aerospace applications. With an all-welded stainless steel construction, the Model DS is suitable for rugged environments and pressure media compatible with stainless steel.
