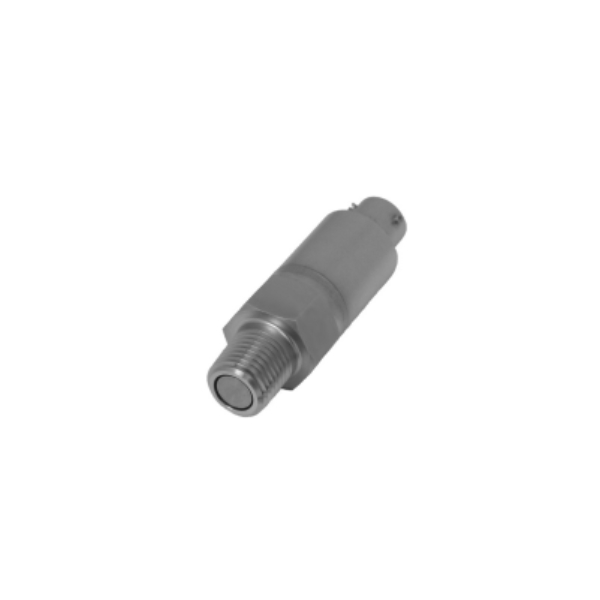

Model A-205a Honeywell Pressure Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model A-205a
Pressure Range	300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000 psig
Accuracy	±0.5 % full scale
Output	4 mA to 20 mA @ 9 Vdc to 28 Vdc 1 Vdc to 5 Vdc or 1 Vdc to 10 Vdc @ 16 Vdc to 28 Vdc
Temperature (Operating)	-29 °C to 82 °C [-20 °F to 180 °F]
Temperature (Compensated)	-1 °C to 71 °C [30 °F to 160 °F]
Temperature Effect (Zero)	0.015 % full scale/°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model A-205a Honeywell Pressure Transducers

DESCRIPTION
The Model A-205a high level output, flush diaphragm pressure
transducer features 4 mA to 20 mA, 1 Vdc to 5 Vdc or 1 Vdc to
10 Vdc (unipolar) output with an unregulated power supply.
Model A-205a gage pressure transducers are manufactured with
a unitized stainless steel diaphragm. The advantage of this type
of design is that a thin diaphragm and heavy sidewalls are made
from one piece of stainless steel. This unitized diaphragm is rugged, but at the same time can be made thin enough to measure
low pressures. Available pressure ranges span from 300 psig
to 10000 psig. These models can be used in corrosive fluid
environments. Model A-205a has welded electrical connectors
as an integral part of the transducer body and recommended
for applications involving rough handling or where an all-welded
stainless steel transducer is required.
All units have four (4) active bonded strain gages arranged in a
Wheatstone-bridge configuration.
