Model 9300 Honeywell Torque Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model 9300
Torque range	Varies on application; consult factory
Linearity	±0.15 % full scale
Non-repeatability	±0.05 % full scale
Frequency response	dc to 1000 Hz
Sensitivity (transmitter)	300 microstrain
Receiver readout display type	3.5 digit 7 segment LED

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

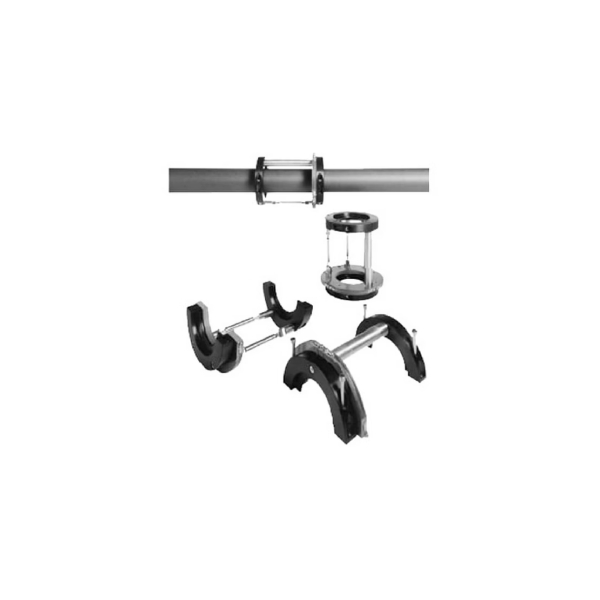

Model 9300 Honeywell Torque Transducers

DESCRIPTION

The Series 9300 Torsionometer is ideal for measuring torque on
machinery where little down time can be afforded. The quick installation of the clamp-on collars with the pre-calibrated bending
beam converts I/O shafts into instant torque transducers.
The 9300 Series are ideal for those applications involving repetitive testing of identical systems. The clamp-on 9300 Series uses
a pre-calibrated bending beam which is clamped at each end
by a counterbalanced collar around a heavy-wall or solid shaft to
sense torque. Each installation uses one of a selection of bending beam lengths to generate the specific output to the on-board
RF transmitter. The strain gage output is then coupled to the
readout device or control loop via an RF telemetry package.
A variety of collars and bending beams are available to accommodate high torque ranges and shafts from 2.5 in to 15.4 in diameter. Running speeds are from 2500 RPM down to zero RPM.
The built-in transmitter can be environmentally sealed for harsh
environments and high vibration.
