2111-20K Honeywell Torque Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	2111-20K
Order Code	2111-20K,1AD,2U,6AC,15C
Torque Range	20000 in-lb
Accuracy	±0.15 %
Output	±2 mV/V (nominal) @ rated capacity
Temperature (Operating)	-54 °C to 93 °C [-65 °F to 200 °F]
Series Name	2110

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

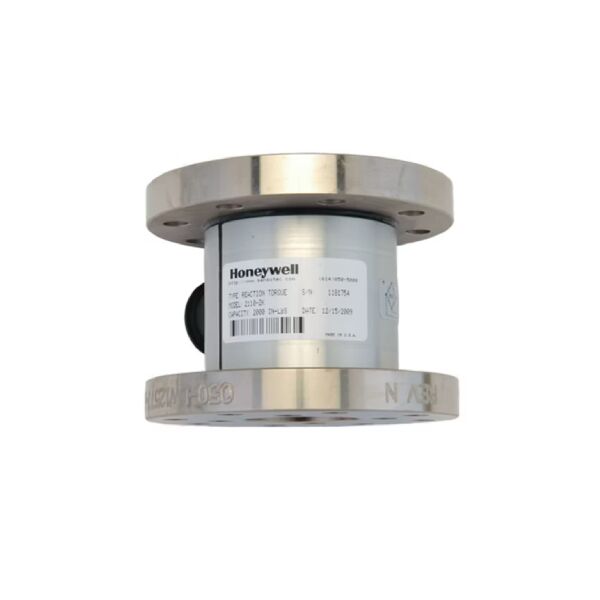

2111-20K Honeywell Torque Transducers

DESCRIPTION
Model 2110-2116 flanged reaction torque sensor is designed for
installation between test pieces such as motors, switches, axles,
or shafts and their mounting plate. These models operate and
are calibrated in both directions. Nickel-plated alloy steel construction enhances durability in harsh, industrial environments.
These models have no moving parts and utilize four bonded
strain gages on a special machined portion of the transducer to
achieve a maximum non-linearity of 0.1% over a wide dynamic
range. Typical applications include tire braking, motor dynamometers, friction-skid testing, and twist measurement. 2000
in-lb to 2400000 in-lb capacities.
