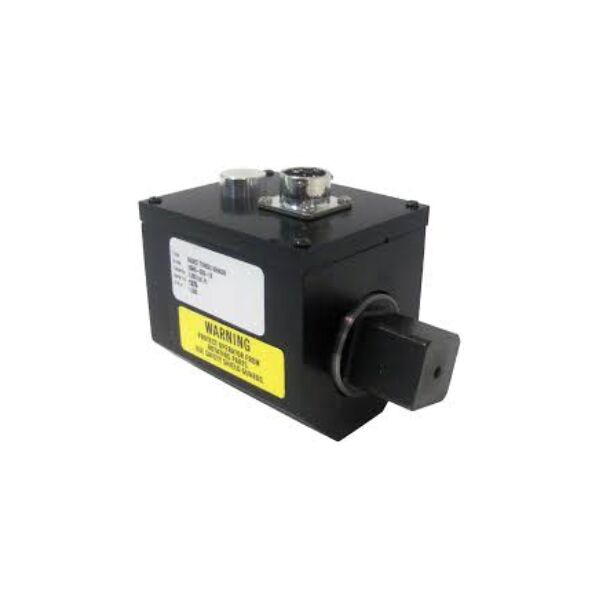

Model 1254 Honeywell Torque Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	Model 1254
Torque range	50, 100, 200 lb-in; 50, 100, 300, 1000 lb-ft
Non-linearity	±0.15 % of rated output
Hysteresis	±0.15 % of rated output
Repeatability	±0.1 % of rated output
Output @ rated capacity	±2 mV/V ±0.25 % full scale
Temperature, operating	-29 °C to 93 °C [-20 °F to 200 °F]1

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Model 1254 Honeywell Torque Transducers

DESCRIPTION
The sensors are primarily used to measure the output torque of
stall and clutch type nutrunners in production fastening operations (not recommended for mechanical impact wrenches). Units
equipped with incremental encoders are available for applications where fastener’s angle of rotation as well as torque data
are required. These sensors are used to monitor operation of
systems using the following fastening strategies: turn of the nut ,
tension control and yield control.
