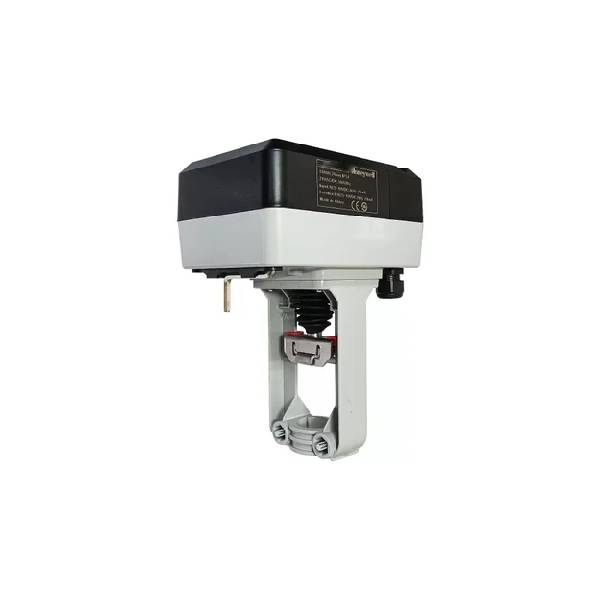

ML8824A1840 Honeywell Electric Linear Valve Actuator

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model ML8824A1840
Supply Voltage 24Vac ± 15% ,50/60Hz; 24Vdc +15% ,-10%;
Power Consumption 14.5VA
Signal input1 0(2) Vdc or 0(4) mA The valve connection is located at the bottom;
2-way valve “closed”; 3-way valve A-AB port “open”
Signal input 2 10 Vdc or 20mA The valve connection is located on the top;
2-way valve “open”; 3-way valve A-AB port “closed”
Feedback Signal 0(2)~10 Vdc, 0(4)~20 mA
Rated Travel 20mm
Run time 40s or 60s
Close-off force ≥1800N
Weight 2.3kg

brochure

Description

ML8824A1840 Honeywell Electric Linear Valve Actuator

Honeywell ML8824A1820 electric linear valve actuators offer modulating controls for linear valves with position feedback signal, 0(2)-10Vdc or 0(4)-20mA. The products can be widely used with linear valves in heating, ventilation, and air conditioning application.

Features

  1. Quick and easy installation
  2. Lower power consumption
  3. Maintenance-free
  4. Self-adaption mode
  5. Adjustable travel speed
  6. Manual operation with override functions
  7. 0(2)~10 Vdc, 0(4)~20 mA input signal
  8. 0(2)~10 Vdc, 0(4)~20 mA position feedback signal
  9. Selectable travel direction
