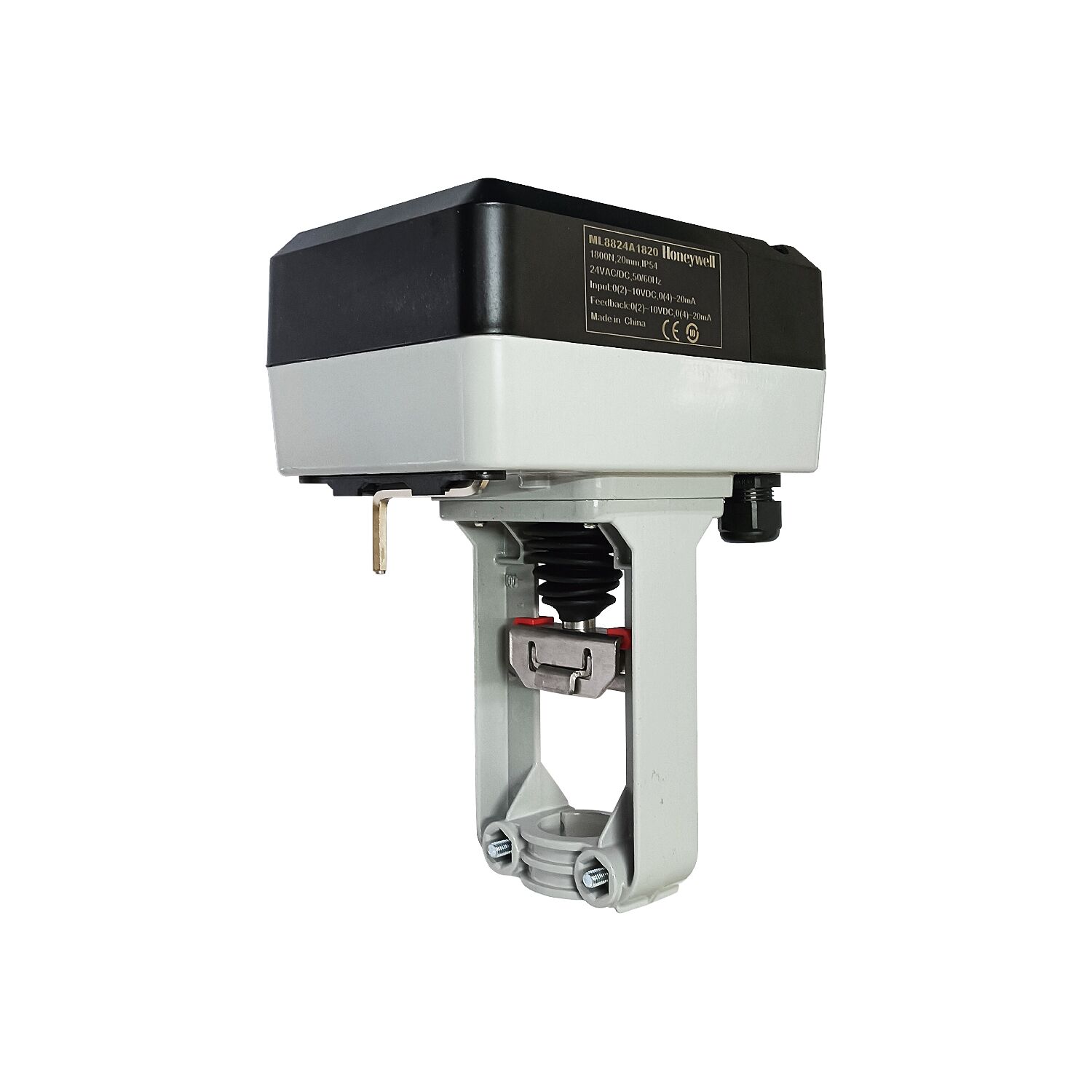

ML8824A1820 Honeywell Electric Linear Valve Actuator

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model ML8824A1820
Supply Voltage 24Vac ± 15% ,50/60Hz; 24Vdc +15% ,-10%;
Power Consumption 14.5VA
Signal input1 0(2) Vdc or 0(4) mA The valve connection is located at the bottom;
2-way valve “closed”; 3-way valve A-AB port “open”
Signal input 2 10 Vdc or 20mA The valve connection is located on the top;
2-way valve “open”; 3-way valve A-AB port “closed”
Feedback Signal 0(2)~10 Vdc, 0(4)~20 mA
Rated Travel 20mm
Run time 40s or 60s
Close-off force ≥1800N
Weight 2.3kg

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

ML8824A1820 Honeywell Electric Linear Valve Actuator

Honeywell ML8824A1820 electric linear valve actuators offer modulating controls for linear valves with position feedback signal, 0(2)-10Vdc or 0(4)-20mA. The products can be widely used with linear valves in heating, ventilation, and air conditioning application.

Features

  1. Quick and easy installation
  2. Lower power consumption
  3. Maintenance-free
  4. Self-adaption mode
  5. Adjustable travel speed
  6. Manual operation with override functions
  7. 0(2)~10 Vdc, 0(4)~20 mA input signal
  8. 0(2)~10 Vdc, 0(4)~20 mA position feedback signal
  9. Selectable travel direction
