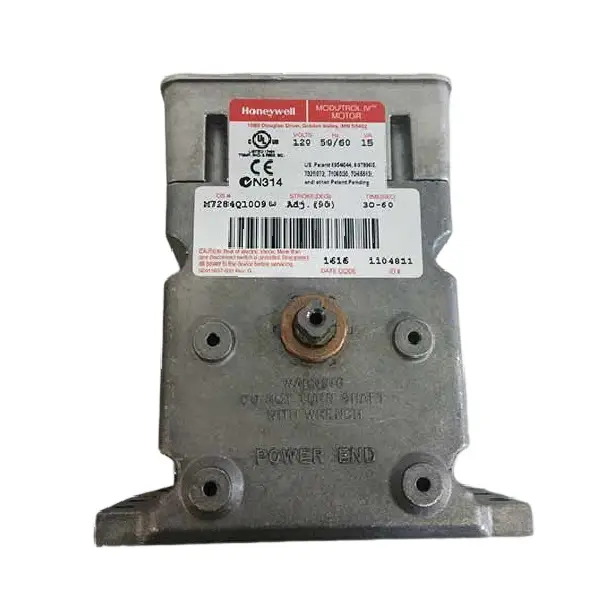

M7284Q1009 Honeywell Modutrol Motor

Available on order

67,500.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model no. M7284Q1009
Approvals UL Listed, CE Approved
Connections 0.375″ Square (10 mm) Shaft Diameter
Ratings NEMA 3, 150 in-lb torque
Voltage/Power 120 Vac, 50/60 Hz
Input(s) Control Signal: Modulating 4-20 mA

Fail Safe Mode: Non-Spring Return (NSR)

Ambient temperature rating: -40 Deg F to 150 Deg F (-40 C to +66 C)

Electrically normally closed, shaft rotates clockwise

Adjustable: 90 to 160 degrees, Symmetrical (Factory Stroke Setting: Fixed 90 Deg)

Timing: Nominal 30-60 sec

Mounting: Foot-mounted, Dual-ended shaft

2 Internal Auxiliary Switches, adjustable zero and span

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

M7284q1009 Honeywell Modutrol Motor

FEATURES
• Replaces M734H,J,; M744S,T,Y; and M745L,S,T,Y Motors.
• M7164, M7261, M7284, and M7294 are non-spring return motors; M7282, M7285, M7286 and M7685 are spring return motors.
• Integral spring return returns motor to normal position when power is interrupted.
• Integral junction box provides NEMA 3 weather protection.
• Motor and circuitry operate from 24 Vac. Models available with factory installed transformer, or a field added internal transformer.
• Quick-connect terminals are standard—screw terminal adapter is available.
• Adapter bracket for matching shaft height of older motors is available.
• Most motors have field adjustable stroke (90° to 160°).
• Die-cast aluminum housing.
• Integral auxiliary switches are available factory mounted, or can be field added.
• Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). Other timings available.
• Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications.
• All models have dual shafts (slotted and tapped on both ends).
• All models have auxiliary switch cams.
• Fixed torque throughout the entire voltage range.
• Motors are designed for either normally open or normally closed valves and dampers.
• Models available with adjustable start (zero) and span.
• Models available with 4 to 20 mA input signal.
• Models available with 2 to 10 Vdc input signal.
