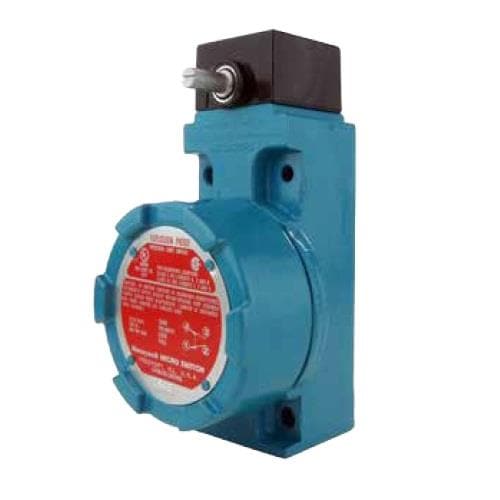

LSXA4L-1A Honeywell Limit Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	LSXA4L-1A
Product Type	MICRO SWITCH™ Hazardous Area Limit Switches
Actuators	Side plunger – adjustable Side plunger – pin Side roller plunger Side rotary Side rotary maintained Top plunger – adjustable Top plunger – pin Top roller plunger Top rotary Wobble – cat whisker Wobble – plastic rod
Circuitry	1NC 1NO SPDT snap action, double break 2NC 2NO DPDT snap action, double break SNPC direct acting 2NC 2NO DPDT sequential 2NC 2NO DPDT center neutral
Electrical	10 A thermal Single and double pole: AC15 A600; DC13 R300
Housing Material	Aluminum
Termination Types	0.5 in – 14NPT conduit 0.75 in – 14NPT conduit
Housing Type	LSX Non-Plug-in
Sealing	NEMA 1, 3, 4, 6, 7 (Class 1, Division 1, Groups B, C, D), 9 (Class 2, Division 1, Groups E, F, G), 13

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

LSXA4L-1A Honeywell Limit Switch

MICRO SWITCH™ LSX switches are for use either indoors or outdoors in hazardous atmospheres as they are a completely sealed, explosion-proof device. An optional mounting plate provides the same tracking and mounting as the standard HDLS. The majority of HDLS operating heads and circuitry options are available on the LSX. Standard HDLS levers are used, but because of explosion-proof requirements, only nylon rollers or other non-sparking material can be selected. Plunger and cat whisker types listed in the LSX order guide are non-sparking materials. The MICRO SWITCH™ LSX withstands pressure of an internal explosion and cools the exploding gases below the kindling temperature of the explosive atmosphere. Flame paths are provided by the cover-housing threads and an extended plunger between the switch cavity and head.
