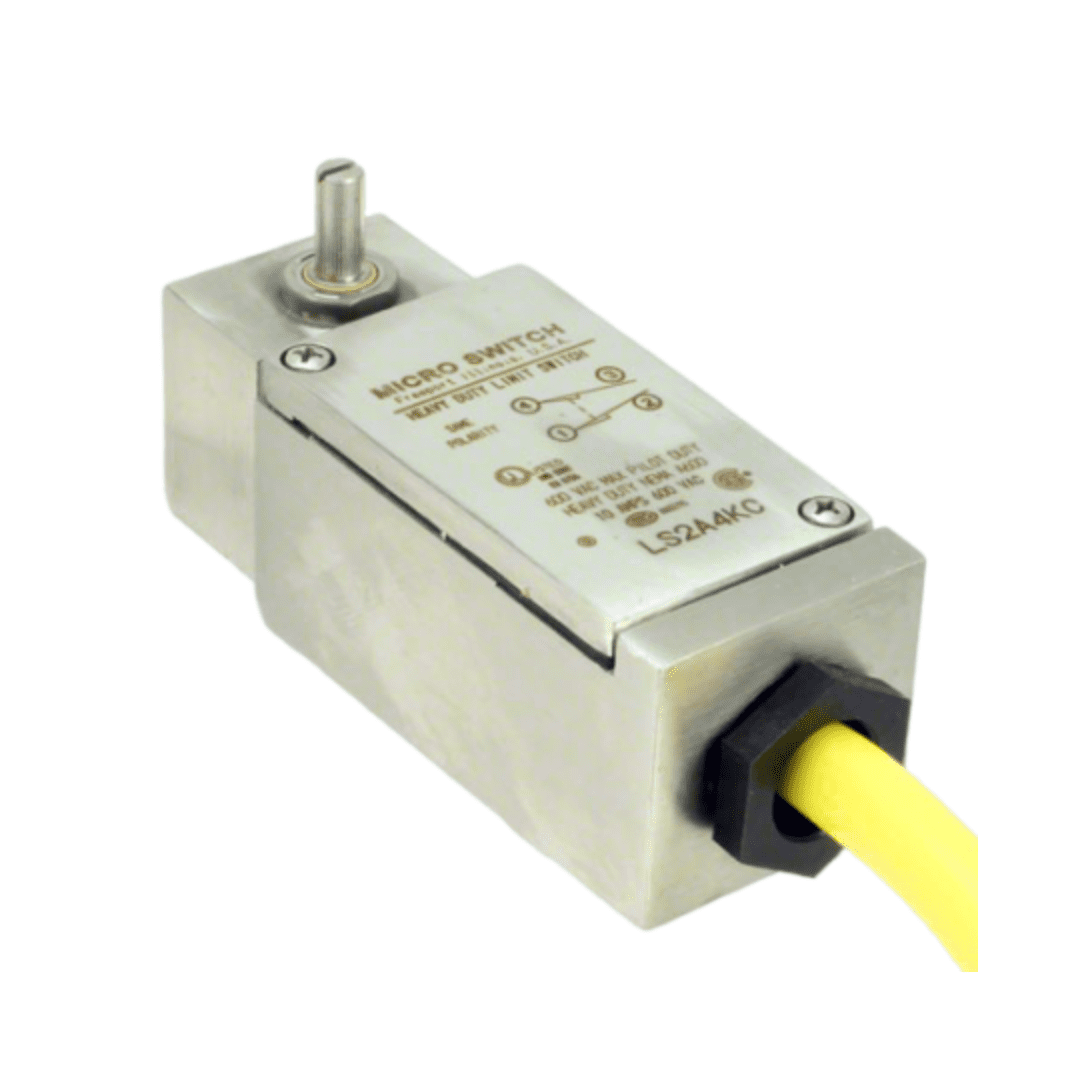

LS2A4KC Honeywell Limit Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. LS2A4KC
Circuitry 1NC 1NO SPDT snap action, double break
2NC 2NO DPDT center neutral, snap action, double break
2NC 2NO DPDT snap action, double break
2NC 2NO DPDT sequential, snap action, double break
Electrical 10 A thermal
Single and double pole: AC15 A600; DC13 R300 (see table on page 8)
Housing type HDLS Plug-in, HDLS Non-Plug-in
Sealing IP65/66/67; NEMA 1, 3, 4, 4X, 6, 6P, 12, 13
Operating temperature -12 °C to 121 °C [10 °F to 250 °F];
optional: -40 °C to 121 °C [-40 °F to 250 ’F]
Agency approvals and standards UL, CE, CSA, CCC
UNSPSC code 302119
UNSPSC commodity 302119 Switches and controls and relays
Sealed Industrial

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell BXINDA4L-1A Flameproof Limit Switch

Description

LS2A4KC Honeywell Limit Switch

Honeywell Sensing and Control’s MICRO SWITCH™ heavy-duty limit switches’ modular construction allows for a wide
variety of actuator styles, operating heads, and electrical circuitry options. The plug-in versions greatly reduce downtime on
production lines with high actuation rates as replacement of the switch is accomplished in seconds. The base receptacle
contains all the wiring and conduit connection while the switching component with operating head easily assembles to the
base and is attached with two screws.
