Honeywell Y-Strainer (YS-SLF4/YS-SF5)

Available on order

Order Information:

Size	PN16	PN10	Weight (kg)
DN50	YS-SF5-PN16-0050	YS-SF5-PN10-0050	12
DN65	YS-SF5-PN16-0065	YS-SF5-PN10-0065	13
DN80	YS-SF5-PN16-008	YS-SF5-PN10-008	17
DN100	YS-SF5-PN16-0100	YS-SFs-PN10-0100	24
DN125	YS-SF5-PN16-012	YS-SF5-PN10-0125	42
DN150	YS-SF5-PN16-01	YS-SF5-PN10-0150	52
DN200	YS-SF5-PN16-0200	YS-SF5-PN10-020	100
DN250	YS-SF5-PN16-025	YS-SF5-PN10-0250	156
DN300	YS-SF5-PN16-0300	YS-SF5-PN10-030	204
DN350	YS-SF5-PN16-0350	YS-SF5-PN10-0350	423
DN400	YS-SF5-PN16-0400	YS-SF5-PN10-0400	641
DN450	YS-SF5-PN16-0450	YS-SF5-PN10-0450	777
DN500	YS-SF5-PN16-050	YS-SF5-PN10-0500	915
DN600	YS-SF5-PN16-0600	YS-SF5-PN10-0600	1347

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Order Information:

Size	Model Number
DN40	YS-SLF4-PN16-0040
DN50	YS-SLF4-PN16-0050
DN65	YS-SLF4-PN16-0065
DN80	YS-SLF4-PN16-0080
DN100	YS-SLF4-PN16-0100
DN125	YS-SLF4-PN16-0125
DN150	YS-SLF4-PN16-0150
DN200	YS-SLF4-PN16-0200
DN250	YS-SLF4-PN16-0250
DN300	YS-SLF4-PN16-0300
DN350	YS-SLF4-PN16-0350

Description

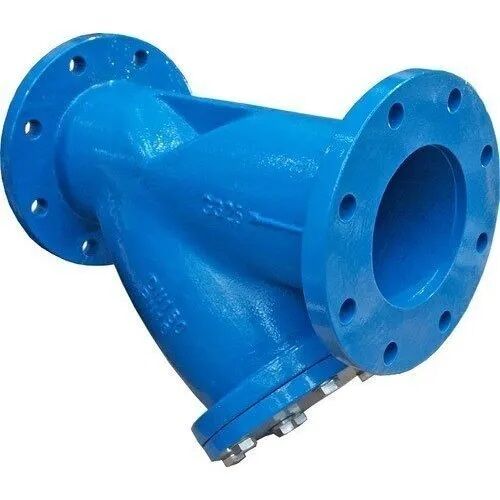

Honeywell Y-type strainer is widely used in water application and is used for protecting valve and other equipments from scrap and impurities in the system.

FEATURES
. Ductile iron body with epoxy coating
. Stainless Steel Filter Stem

SPECIFICATION

Nominal Pressure Rating: PN16, PN10

Size Range:DN50 to DN600

Medium: Chilled and hot water 50% glycol solution

Medium temperature: -10 to 120 ºC

End Connection: Flanged ( lSO7005-2)

MATERIAL LIST

Body: QT450-10

Bonnet: QT450-10

Gasket: EPDM

Filter Screen: SS304
