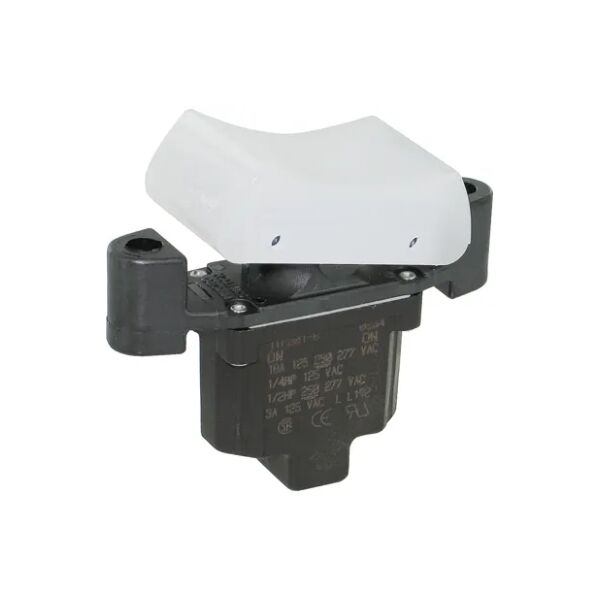

Honeywell Rocker Switch 1TP201-8

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model Number 1TP201-8
Description commercial grade rocker switches
Housing material glass-filled thermoplastic nylon 6/6
Sealing switch chamber sealed from environment
Operating temperature -54 °C to 71 °C [-65 °F to 160 °F]
Mounting two 6-32 internal threads with lead-in and thread locking feature on 46 mm [1.81 in] centers panel cutout 38,4 mm x 23,9 mm [1.51 in x 0.94 in]
Switch/button action 2- or 3-position, maintained or momentary action
Circuitry SPST, SPDT, DPST, DPDT, 4PST, 4PDT
Termination screw (6-32 threads), quick-connect (6,35 mm [0.25 in]), and IWTS
Contact material silver alloy or gold plated
Electrical rating (amps) up to 20 A resistive (see tables below)
Approvals/certifications CE, CSA, UL

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell 11HM1 Hermetic Sealed Basic Micro Switches

Description

Honeywell Rocker Switch 1TP201-8

FEATURES

  1. 2 and 3 position pushbutton action
  2. Various button colors
  3. 1, 2, and 4 pole circuitry
  4. Flush panel and above panel mounting
  5. Temperature range is from –65°F to +160°F (–54°C to +71°C)
  6. UL recognized, CSA certified
  7. CE approved
