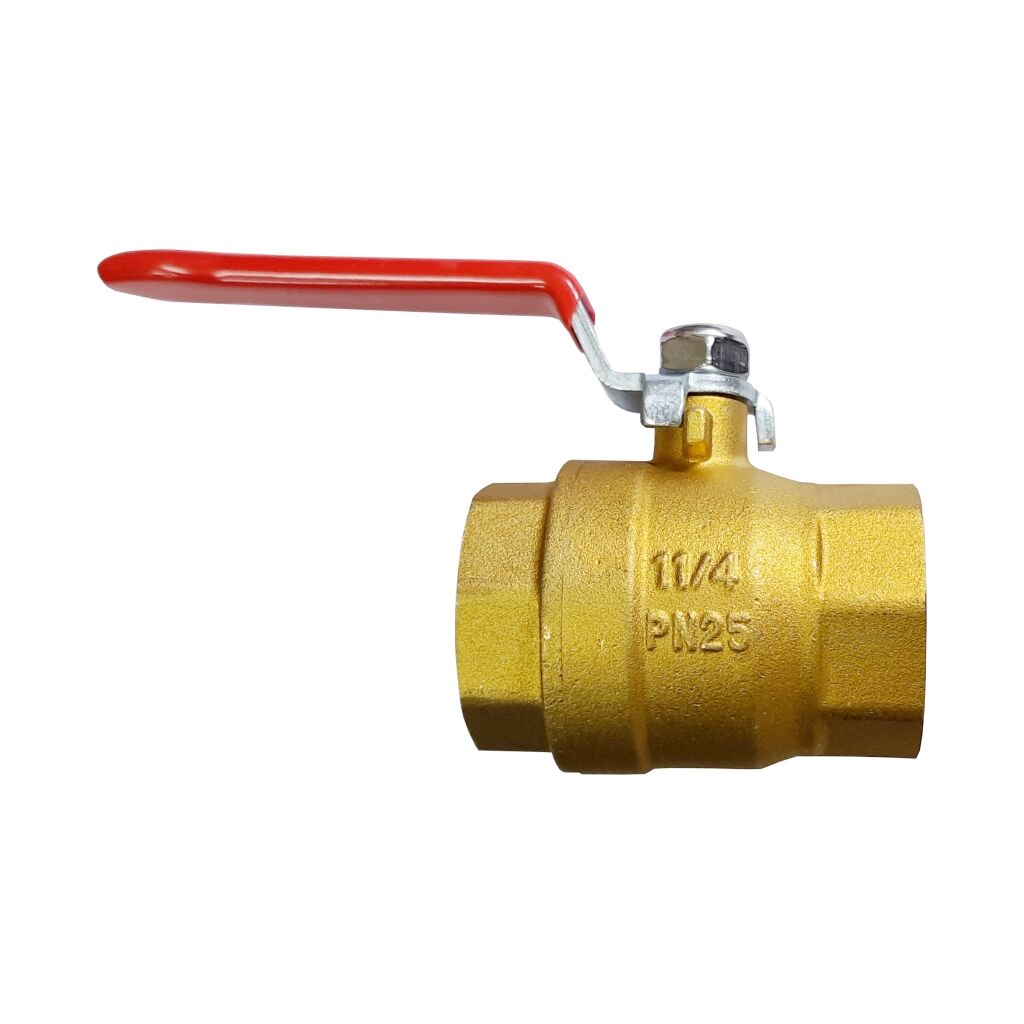

Honeywell Manual Ball Valve (BA-HIPL)

Available on order

For Bulk requirement, Kindly click on enquiry now button

PN16 Details:

Size	Part No.	Bore Size	Weight(gms)
1/2 inch	BA-HIPL-PN16-015	13 mm	166
3/4 inch	BA-HIPL-PN16-020	18 mm	221
1 inch	BA-HIPL-PN16-025	22.5 mm	342
1 1/4 inch	BA-HIPL-PN16-032	28 mm	594
1 1/2 inch	BA-HIPL-PN16-040	35 mm	826
2 inch	BA-HIPL-PN16-050	44 mm	1250
2 1/2 inch	BA-HIPL-PN16-065	60 mm	2420
3 Inch	BA-HIPL-PN16-080	75 mm	3340

PN25 Details:

Size	Part No.	Bore Size	Weight(gms)
1/2 inch	BA-HIPL-PN25-015	13	182
3/4 inch	BA-HIPL-PN25-020	18	265
1 inch	BA-HIPL-PN25-025	22.5	410
1 1/4 inch	BA-HIPL-PN25-032	28	641
1 1/2 inch	BA-HIPL-PN25-040	35	859
2 inch	BA-HIPL-PN25-050	44	1404
2 1/2 inch	BA-HIPL-PN25-065	60	2680
3 Inch	BA-HIPL-PN25-080	75	3560

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Honeywell Manual Ball Valve Features:

• Forged Brass Body
• Chrome Plated Ball
• Standard Port and Full Port Design

Technical Specification:

Valve sizes Threads : 1/2 inch to 3 inch BSP Internal
Nominal pressure : PN16, PN25

Model No: BA-HIPL Series

Material List:
Handle- Chrome Plated Iron
Nut- Brass Plated Iron
Spring- Lock
Washer- Plastic
Gland Nut- Brass
Stem- Brass plated Iron
Ball- Chrome Plated Brass
Body- Forged Brass
