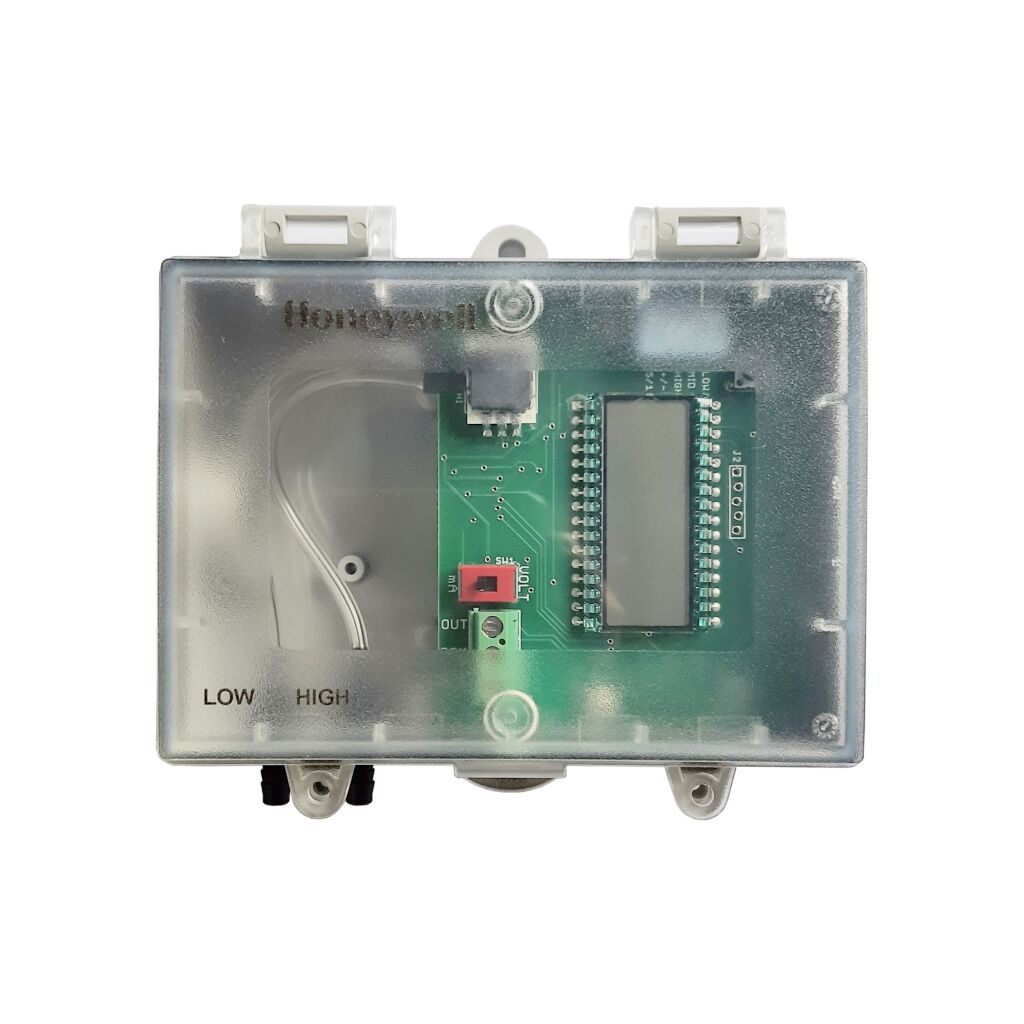

HLPB04X Honeywell Differential Pressure Transmitter

₹8,500.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Feature Parameter
Brand Honeywell
Model Number HLPB04X
Accuracy ±1% F.S.O.
Measurement Type Differential (HLPX-two port, HLPS-single port)
Static, Velocity, & Total Pressure
Response Time 250 ms
Stability < ±1% F.S.O. per year
Thermal Effects < ±3% over compensated range
Compensated Range 0 to 50°C
Proof Pressure 40” W.C. (100” for 10” & 20” Models)
Burst Pressure 60” W.C. (200” for 10” & 20” Models)
Operating Conditions 0 to 70°C (32 to 158°F),
10 to 90 %RH, non-condensing
Power Supply 20 – 28 Vac/dc (non-isolated half-wave rectified)
Supply Current Current: 20 mA maximum
Voltage: < 4 mA
Input Voltage Effect Negligible over specified operating range
Protection Circuitry .Reverse voltage protected and output limited
Output Signal 4-20 mA (2-wire), 0-5 or
0-10 Vdc (3-wire), switch selectable
Output Drive Capabilities Current: 400 ohms max @ 24 Vdc
Voltage: 10K ohms minimum
Zero Adjustments Pushbutton auto-zero
Wiring Connections Screw terminal block (14 to 22 AWG)
Pressure Connection Barbed ports for 5 mm (0.170” ID) flexible tubing
Conduit Connection 1/2” NPT conduit or cable gland
Display 3½ digit LCD, 0.4” digit height
Enclosures Polycarbonate UL94-V0, IP65 (NEMA 4X)
F style includes thread adapter
(1/2” NPT to M16) and cable gland fitting
Country of Origin Canada

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

HN200MH1W0

Category: Tags:

Description

HLPB04X Honeywell Pressure Transmitter

The HLP is used to measure positive, negative or differential pressure. The piezoresistive sensor is ideal for monitoring the pressure of air or other clean inert gas. Typical HVAC applications include monitoring of filter differential pressure or VAV applications. An integrated static pressure probe provides ease of installation for duct mounting. Several accessories are available. A weatherproof polycarbonate enclosure is provided for electrical connections and ease of installation.



APPLICATIONS
The HLP low-pressure transmitter is designed for use with electronic controllers in domestic or commercial heating and cooling systems.

Additional information

Weight 1 kg
