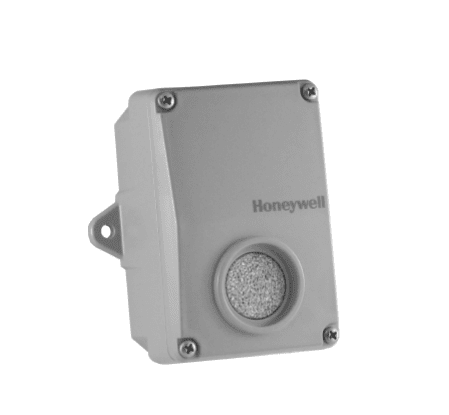

Name: HCMD5B1000 Honeywell Carbon Monoxide Detector
SKU: 59593
Price: 18879.00 INR
Availability: OutOfStock

HCMD5B1000 Honeywell Carbon Monoxide Detector

Available on order

₹18,879.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	HCMD5B1000
Sensor Type	Electrochemical Carbon Monoxide Detector
Measurement Range	0-300 PPM
Accuracy	±5 PPM or 5% of reading (whichever is greater)
Accuracy rated	0˚ to 50˚C, 15 to 95% RH
Life Expectancy	5-7 years in air
Typical Coverage Area	700 m² (7500 ft²) or 15 m (50 ft²) radius
Operating Conditions	-20˚ to 50˚C 15 to 95% RH
Sample Method	Diffusion
Stability	<5% signal loss/year
Response Time	<35 seconds for 90% step change
Wiring Connections	Screw terminal block (14 to 22 AWG)
External Dimensions	71 x 104 x 46mm (2.8”w x 4.1”h x 1.8”d)
Enclosure Ratings	ABS – UL94-V – IP65 (NEMA 4X)
Sensor Agency Approvals	Sensor is UL Recognized Component for ANSI/UL-2034, UL-2075
Relay Output	Form C, (NO & NC), 5 Amps @ 250Vac/30Vdc
Power Supply	24 Vdc ± 20% or 24 Vac ± 10%
Consumption	50 mA max
Output Signal	4-20 mA sourcing
Output Drive at Capability	550 ohms max. @ 24 Vac/dc
Relay Contacts	Form C contact (N.O. and N.C.) 5 amps @ 250 Vac, 5 amps @ 30 Vdc
Relay Trip Point	25, 60 or 150 ppm, jumper selectable
Relay Hysteresis	3% or 9 ppm

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The HCMD5B1000 Carbon Monoxide Detector , HCMD5B1 Series carbon monoxide detector uses a superior electrochemical sensing element with state-of-the-art digital linearization circuitry in a compact wall mount ABS enclosure to detect CO levels. HCMD5B1000 Carbon Monoxide Detector provides a linear analog signal output of 4-20 mA (Loop-powered with 24 Vdc) signal or optional Modbus communications. An optional alarm relay are available.

APPLICATIONS
The HCMD5B1 series carbon monoxide detector is designed for use with electronic controllers in domestic or commercial heating and cooling systems

FEATURES

• Electrochemical sensing element
• 0-300 PPM (Analog) or 0-500 PPM (Modbus)
• Loop-powered 4-20 mA output
• Optional adjustable alarm relay
• Optional Modbus communications
• Compact ABS enclosure
