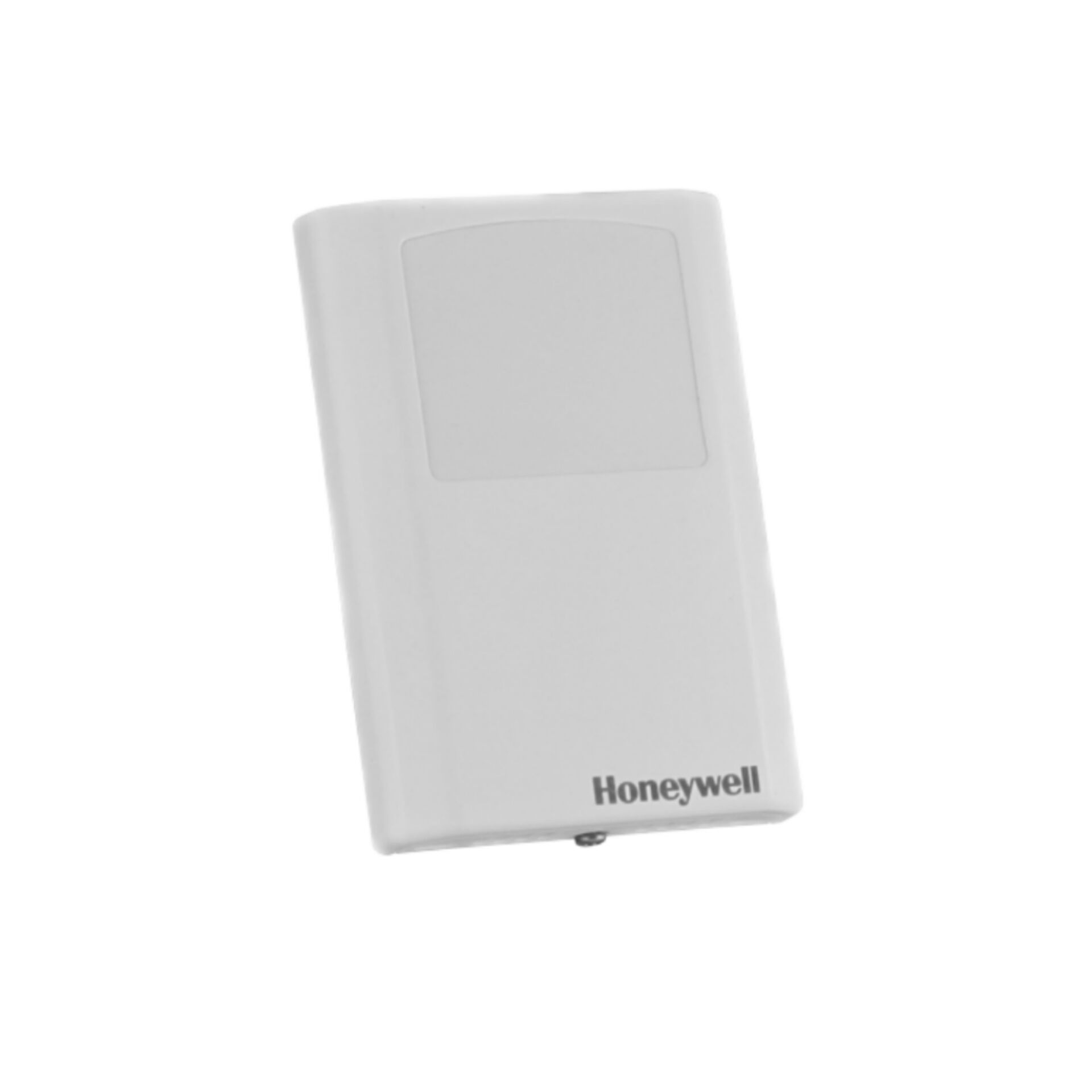

Name: HCERMC20 Honeywell CO2 Sensor
SKU: 59619
Price: 16418.00 INR
Availability: OutOfStock

HCERMC20 Honeywell CO2 Sensor

Available on order

₹16,418.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	HCERMC20 Space Carbon Dioxide Sensor
CO2 Sensor	Dual wavelength non-dispersive infrared (NDIR)
Range	0-2000 ppm
Accuracy	± (50 ppm + 3% of reading)
Pressure Dependency	< 1% of reading / kPa
Response Time	2 minutes (T90)
Warm-up Time	1 minute
Sensor Life Span	> 10 years
Power Supply	24 Vac/dc ± 20% (non-isolated half-wave rectified)
Consumption	..80 mA max @ Vdc, 160 mA max @ 24 Vac
Protection Circuitry	Reverse voltage and transient protected
Output Signals	4-20 mA, 0-5 Vdc, 0-10 Vdc (field selectable )
Drive Capability	Current: 600Ω max @ 24 Vdc Voltage: 10KΩ min
Operating Conditions	.-10 to 50°C (14 to 122°F), 0-90 %RH, non-condensing
Storage Conditions	30 to 70°C (-22 to 158°F) 0-85 %RH non-condensing
Wiring Conditions	Screw terminal block (14-22 AWG)
Enclosure	ABS, UL94-V0, IP30 (NEMA 4X)
Optional Temperature Sensor	Various RTDs of thermistors as a 2 wire resistance output
Approvals	CE, RoHS
Country of Origin	Canada

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The HCERMC20 Honeywell CO2 Sensor, HCERMC uses a highly accurate and reliable nondispersive infrared (NDIR) sensor in an attractive, low-profile enclosure to monitor ambient CO2 levels for room applications. The Honeywell HCERMC20 CO2 Sensor compact dual wavelength CO2 sensor achieves excellent performance characteristics, including high accuracy and low power consumption to ensure stable long term operation. The device is also available with an optional resistive temperature sensor.

APPLICATIONS
The HCERMC wall mount CO2 sensor is designed for
use with electronic controllers in domestic or commercial
heating and cooling systems.
