Name: HCD2RMCVXXXXXXX Honeywell CO2 Sensor
SKU: 59460
Price: 20465.00 INR
Availability: OutOfStock

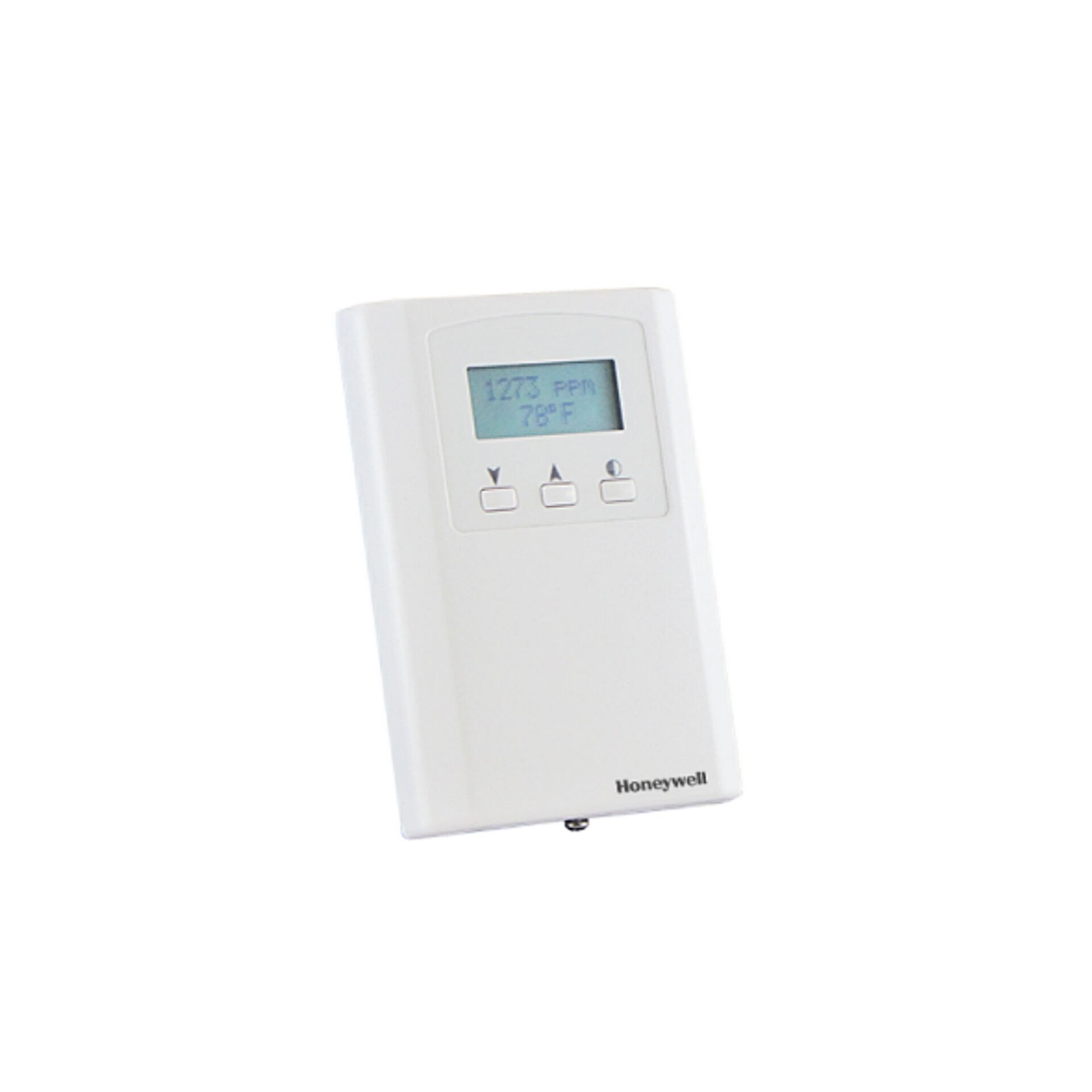

HCD2RMCVXXXXXXX Honeywell CO2 Sensor

Available on order

₹20,465.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	HCD2RMCVXXXXXXX Room Carbon Dioxide Transmitter
Gas Type Detected	Carbon dioxide (CO2)
Sensor Type	Dual wavelength non-dispersive infrared (NDIR)
Sensor Accuracy	.± 50 ppm + 3% of reading
Measurement Range	0-2000 ppm (default), adjustable 1000-5000 ppm
Pressure Dependency	< 1% of reading / kPa
Response Time	90 seconds (T90)
Warm-Up Time	1 minute
Sensor Coverage Area	100 m2 (1000 ft2) typical
Sensor Life Span	>10 years
Transmitter Accuracy	±0.25% of span
Power Supply	24 Vdc ±20% or 24 Vac ±10% (non-isolated half-wave rectified)
Protection Circuitry	Reverse voltage and transient protected
Input Voltage Effect	Negligible over specified operating range
Output Signal Type	4-20 mA (3-wire), 0-5 or 0-10 Vdc (field selectable)
Current Consumption	Current: 75 mA @ 24 Vdc max, 150 mA @ 24 Vac max Voltage: 50 mA @ 24 Vdc max, 100 mA @ 24 Vac max
Output Drive @ 24 Vdc	Current: 550Ω max Voltage: 10,000Ω min
Ambient Operating Range	-10 to 50°C (14 to 122°F), 5 to 90 %RH non-condensing
Storage Conditions	30 to 70°C (-22 to 158°F), 5 to 90 %RH non-condensing
LCD Display Units	.ppm (CO2), °C/°F (optional temperature/setpoint)
Display Range	0-5000 ppm, 0 to 50°C / 0 to 122°F
Display Size	35mm W x 15mm H (1.4″ x 0.6″)
Digit Height	2-line x 8 character
Enclosure	White ABS, IP30 (NEMA 1) 84mm W x 119mm H x 29mm D (3.3″ x 4.7″ x 1.15″)
Wiring	Screw terminal block (14 – 22 AWG)
Approvals	CE
Country of Origin	Canada
Product Description	Room Carbon Dioxide Transmitter
Display	Viewable LCD

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The HCD2RMCVXXXXXXX Honeywell CO2 Sensor , room CO2 transmitter device uses a highly accurate and reliable nondispersive infrared (NDIR) sensor in an attractive, low profile enclosure for room applications to monitor CO2 levels. Honeywell HCD2RMCVXXXXXXX CO2 Sensor uses dual wavelength optics and LTA (long term adjustment) signal processing technology to deliver industry leading long-term accuracy and reliability. These technology features ensure optimum measurement stability for both periodic and constant occupancy applications, so the device is equally suitable for a classroom or a hospital room.

Standard features include a field selectable output signal of either 4-20 mA, 0-5 Vdc or 0-10 Vdc for the highest versatility, programmable CO2 measurement span, a backlit alphanumeric LCD and easy menu operation for configuration. Optional features include a resistive temperature sensor output (with LCD display of temperature in either °C or °F), 2 button setpoint adjustment, a control relay with programmable setpoint, hysteresis and time delay, and a dry-contact override switch.
