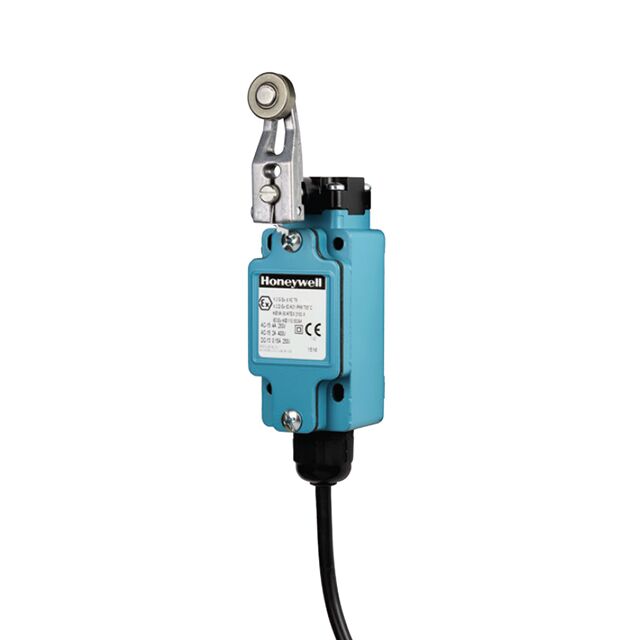

GXA51A1B Honeywell Limit Switch

Product Details:

Product Description
Brand Honeywell
Model No. GXA51A1B
Mechanical life up to 2 million operations
Degree of protection IP66, EN 60529
Operating temperature @ 3 A -20°C to 75°C [-4°F to 167°F]
Operating temperature @ 4 A -20°C to 60°C [-4°F to 140°F]
Standards/approvals EN IEC 60079-0, EN 60079-1, EN 60079-31
II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T85°C Db
KEMA 00 ATEX 2103 X; IEC Ex KEM10.0039X
(X indicates special conditions for safe use, see certificates for details)
Electrical rating AC15, DC13
1NC/1NO change over contacts
Double insulated switch element
No internal or external earth connection
Contact material silver
Cable/body Harmonised Cenelec cable, HO5VV-F, 3-core x 0,75 mm2
Black (BK) – common
Grey (GY) – NC
Brown (BN) – NO
Epoxy-sealed cable and body
Shock 50 g, IEC 60068-2-27
Vibration 10 g, IEC 60068-2-6

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

GXA51A1B Honeywell Limit Switch

The GXS Series flame-proof limit switches are designed specifically for use in hazardous applications. The GXS enclosure is epoxy sealed and has an environmental protection of IP66 as per IEC/EN 60529. The entire GXS Series complies with the European Directive on Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres (2014/34/EU) commonly referred to as the ATEX Directive.
