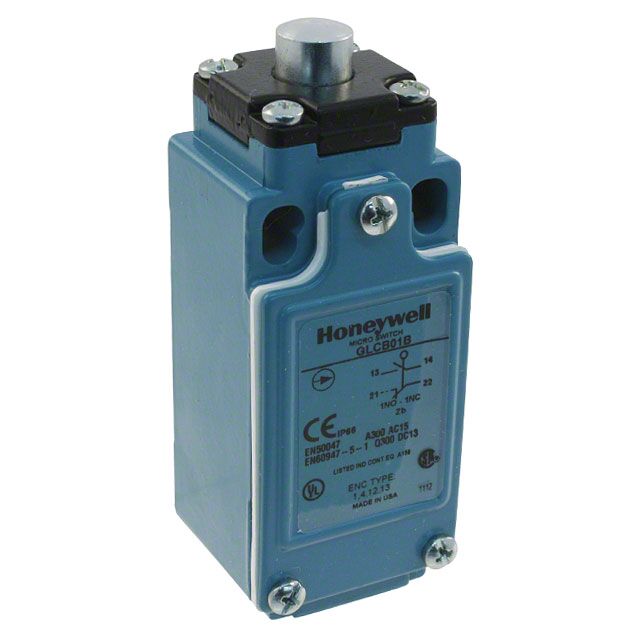

GLCB01B Honeywell Limit Switch

Product Details:

Product Description
Brand Honeywell
Model No. GLCB01B
Conforming to standards CE, EN 50047, IEC/EN 60947-5-1; CSA C22.2 #14; UL 508; CCC1 GB14048.5; EN 45545-2 (GLC/GLE); and EN 61373
Housing material GLC Series and GLE Series: Electrostatic epoxy coated zinc
GLD Series: High-strength glass re-enforced thermoplastic
Actuators Side rotary, top pin plunger, top roller plunger, top roller lever, top wobble actuator
Termination 0.5-14 NPT, PG 13,5, 20 mm, PF 1/2, Deutsch style 4-pin connector other cable/connector options available, contact the Honeywell Representative
Contact options* GLC metal housing and GLD plastic housing: 1NC/1NO, 2NC, 2NO
GLE metal housing, 1NC/1NO, 2NC, 2NO, 2NC/2NO
Contact type snap-action, slow-action break-before-make (BBM), slow-action make-before-break (MBB), slow action
Contact material silver (standard), gold plated (low-energy applications)
Thermal current (Ith) 10 A
Rated insulation voltage (Ui) 300 V
Rated impulse voltage 2.5 kV

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

GLCB01B Honeywell Limit Switch

Honeywell MICRO SWITCH GLC miniature limit switch family offers a wide range of products for global solutions. These durable and reliable limit switches are suitable for many industrial applications, agriculture equipment, transportation equipment, and other applications requiring an environmentally sealed (IP and NEMA) switch. The compact housings are often ideal for equipment where space is at a premium. The extensive product range is available in three different housing types; metal housing, plastic housing or a three conduit metal housing which are mounting compatible to EN50047. A wide range of actuators, contact blocks, and conduit/ connectivity options enhance the product offering. In today’s demanding age of logic-level controls, electromechanical switches are
frequently used to interface with PLCs and other logic level devices. GLS limit switches offer an option for gold-plated contacts for
the standard switch. This option promotes the switch reliability for logic-level applications.
