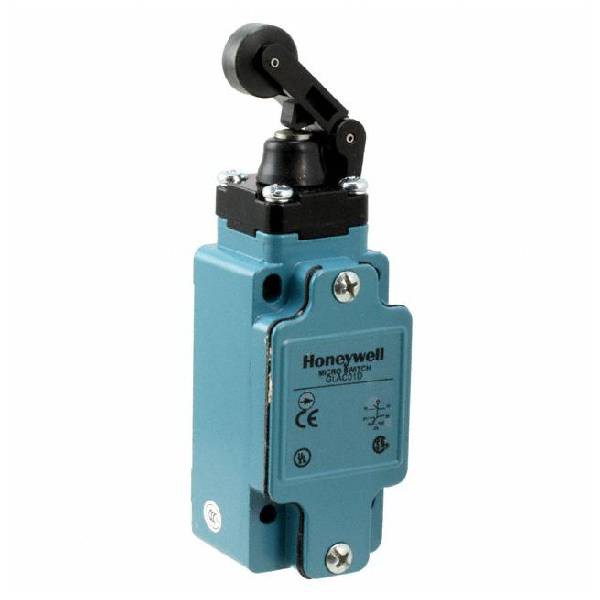

GLAC01D Honeywell Limit Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	GLAC01D
Certifications	CE, CCC1, CSA, UL
Housing material	Electrostatic epoxy coated zinc
Contact material	Silver alloy (standard), gold-plated (low-energy applications)
Rated operational voltage (Ue)	240 Vac, 600 Vac, 250 Vdc
Rated operational current (Ie)	3 A, 1.2 A, 0.27 A
Thermal current (Ith)	10 A, 2.5 A
Rated insulation voltage (Ui)	300 V; 600 V
Pollution degree	3
Sealing	IP67; NEMA/UL 1, 4, 12, and 13
Operating temperature	-40 °C to 85 °C [-40 °C to 185 °F] side rotary actuator -25 °C to 85 °C [-13 °F to 185 °F] other actuators
Mechanical life	Up to 15 million operations
Vibration	10 g conforming to IEC 68-2-6
Shock	50 g conforming to IEC 68-2-27
Body Style	Non plug-in
Conduit	20 mm
Basic Switch	1NC/1NO, SPDT snap action
Head	Top roller lever, nylon 19 x 8 mm roller

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Description :-

GLAC01D Honeywell Limit Switch Series is designed to global EN50041 standards and well suited for worldwide applications. Honeywell modular design (heads/actuators, bodies, and contact blocks) of the limit switch allows for rapid response to meet customer applications. The rugged die-cast metal housing of the switch is ideal for indoor and outdoor applications where a degree of IP or NEMA enclosure sealing is required. Honeywell Limit Switch Normally closed snap-action contacts and normally closed slow action contacts are positive opening.
