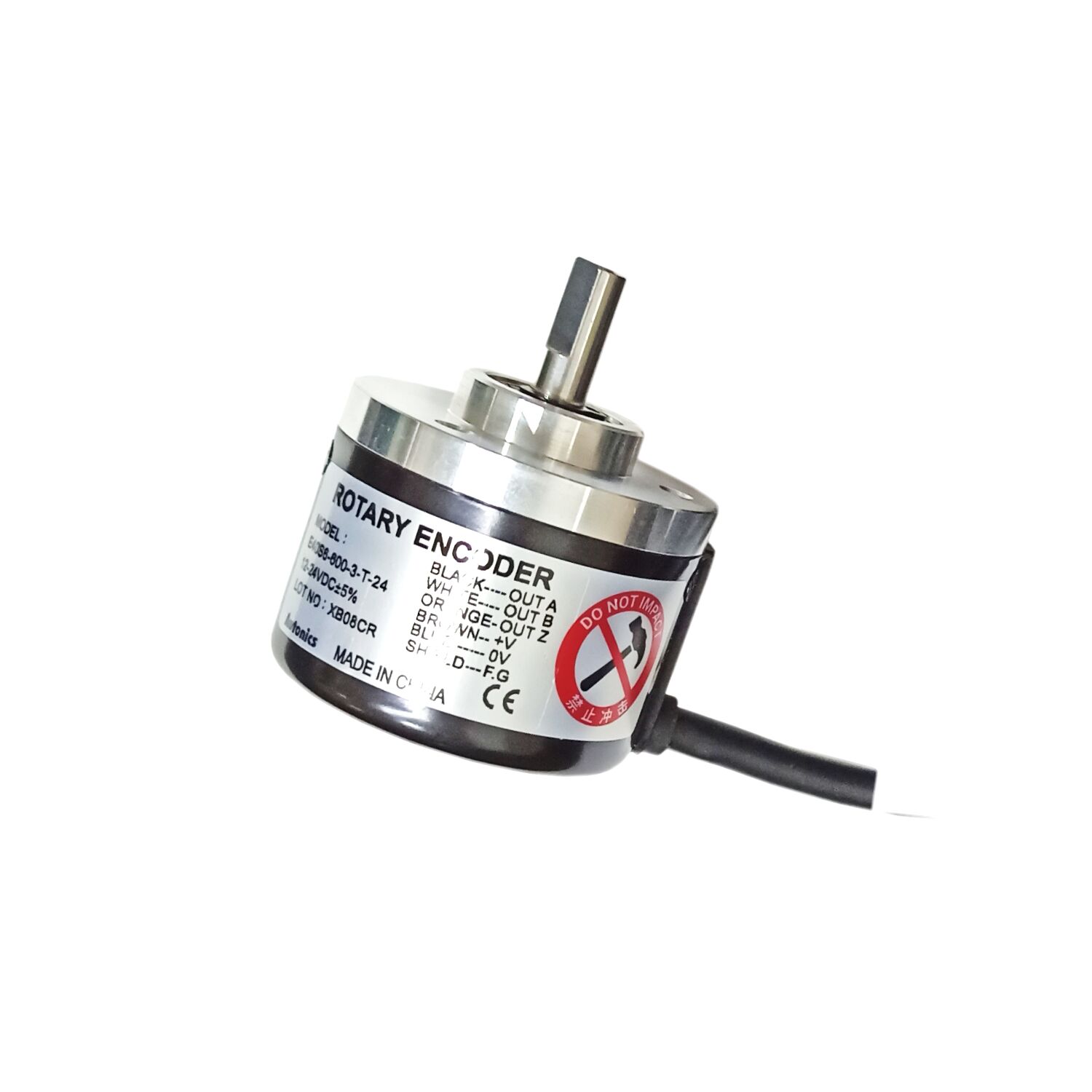

E40S6-600-3-T-24 Autonics Encoder

7,658.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. E40S6-600-3-T-24
Shaft outer diameter Ø6mm
Max. response frequency 300kHz
Max. allowable revolution 5000rpm
Starting torque Max. 40gf.cm(max. 0.00392N.m)
Resolution 600P/R
Output phase A, B, Z
Control output Totem pole
Power supply 12-24VDC ±5%(ripple P-P: max. 5%)
Connection type Radial cable type
Protection structure IP50
Environment Ambient temperature -10 to 70℃, storage: -25 to 85℃
Environment Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Accessories Ø6mm coupling standard, Ø8mm coupling(sold separately)
Weight Approx. 120g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics E40S6 Encoder

Description

Features:
● 12-24VDC power supply of line driver output(Line-up)
● Easy installation at narrow space
● Small moment of inertia
● Power supply : 5VDC, 12-24VDC ±5%
● Various output types
