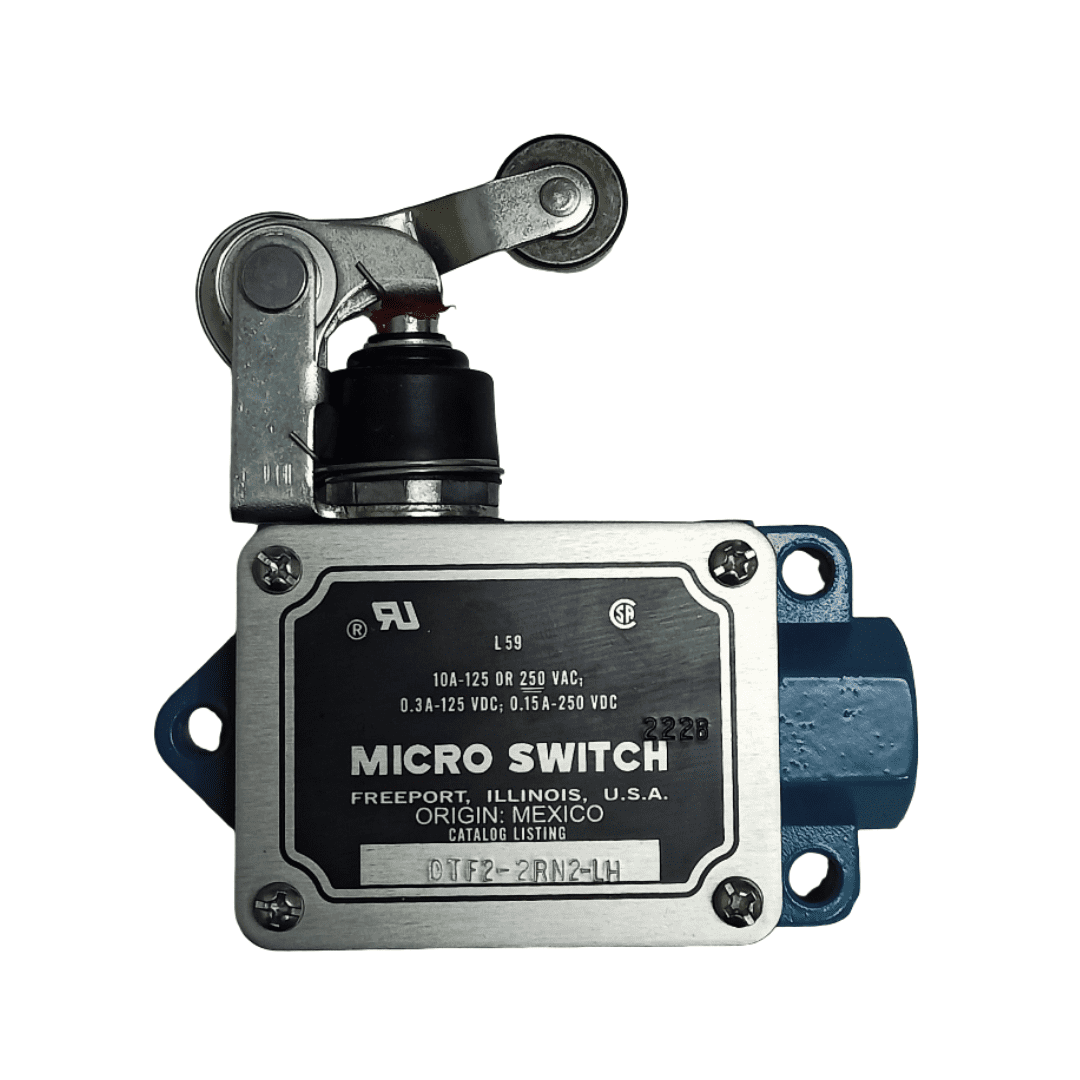

DTF2-2RN2-LH Honeywell Limit Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	DTF2-2RN2-LH
Description	High capacity enclosed switch
Actuator Type	Left
Conduit	1/2 in-14 NPT
Switching options	DPDT field adjustable 360° horizontally and 225° vertically
Sealing	NEMA 1, 3, 4 and 13
Operating temperature	-32 °C to 71 °C [-25 °F to 160 °F] (standard)
Housing material	Zinc die-cast
Approvals	UL, CSA
Pretravel	5,56 mm [0.219 in]
Different. travel	0,51 mm [0.020 in]
Overtravel	6,35 mm [0.250 in]
Operating force	8,90 N [2 lb]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

DTF2-2RN2-LH Honeywell Limit Switch

DESCRIPTION
MICRO SWITCH BAF1 high capacity enclosed switches offer elastomer boot on sealed actuator verions that protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated “right” or “left,” when looking at the nameplate.

FEATURES
• Up to 20 ampere capacity
• Cast aluminum housing with three-hole mounting
• Right or left-handed (sealed or unsealed) actuators
• Cover seal, captive cover screws
• Momentary or maintained contact
• UL recognized, file #E12252
• CSA certified, file #LR41372
• Sealed to NEMA 1, 3, 4 and 13 requirements
• Grounding screw

POTENTIAL APPLICATIONS
• Packaging equipment
• Special machinery
• Agricultural machinery
• Conveyors
• Overhead cranes and hoists
