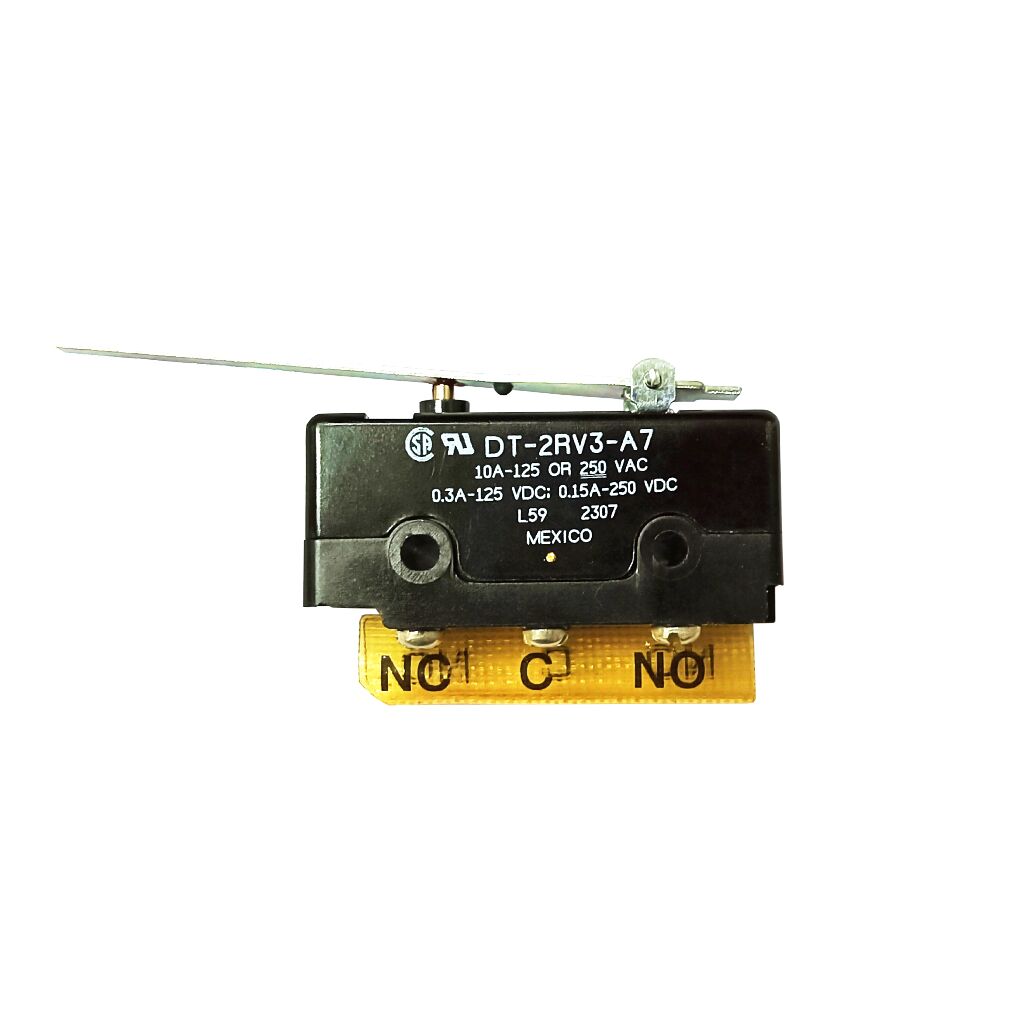

DT-2RV3-A7 Honeywell Micro Switch

3,450.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. DT-2RV3-A7
Circuitry DPDT
Operating force 3,34 N to 5,56 N [12.0 oz to 20.0 oz] max.
Termination screw
Voltage 125 Vac, 250 Vac, 28 Vdc
Operating temperature -55 °C to 85 °C
Contact material silver
Actuator Straight lever,reversed lever position
Operating Force 1,11 to 1,95 N
Release Force 0,14 min. mm
Pretravel Force 6,86 max, mm
Overtravel 0,25 min. mm
Operating Position 18,3 mm

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell SZL-WL-K-A01H Heavy Duty Limit Switches

Description

DT-2RV3-A7 Honeywell Micro Switch premium specialty large snap-action switch designed for repeatability and enhanced life. These series of precision switches feature application-specific characteristics. From double-break circuitry to handling power duty electrical loads, MICRO SWITCH premium large snap action switches are suitable for a variety of applications.

Honeywell DT-2RV3-A7 Micro Switch consist of two independent single-pole double throw (SPDT) contacts in one housing controlled by an integral common actuator. The DPDT contact configuration provides a contact for the control circuit and a different contact for the signal or auxiliary circuit.

Features :

  1. Double pole design in small package allows for control of two independent circuits
  2. Variety of integral plunger and lever options or auxiliary plunger and lever options
  3. Most switches mount on the common 25,4 mm [1.00 in] centers
  4. Metal or plastic enclosures available to prevent contact with switch terminals
  5. Select switch series with a temperature range of -55 °C to 85 °C [-67 °F to 185 °F]
  6. Agency certifications with CSA and UL for select catalog listings

Potential Applications

  1. Temperature and pressure switch assemblies
  2. Motor and solenoid dc control circuits
  3. Welder control circuits
  4. Switch element in machine tools
  5. • Switch element in manually operated devices
