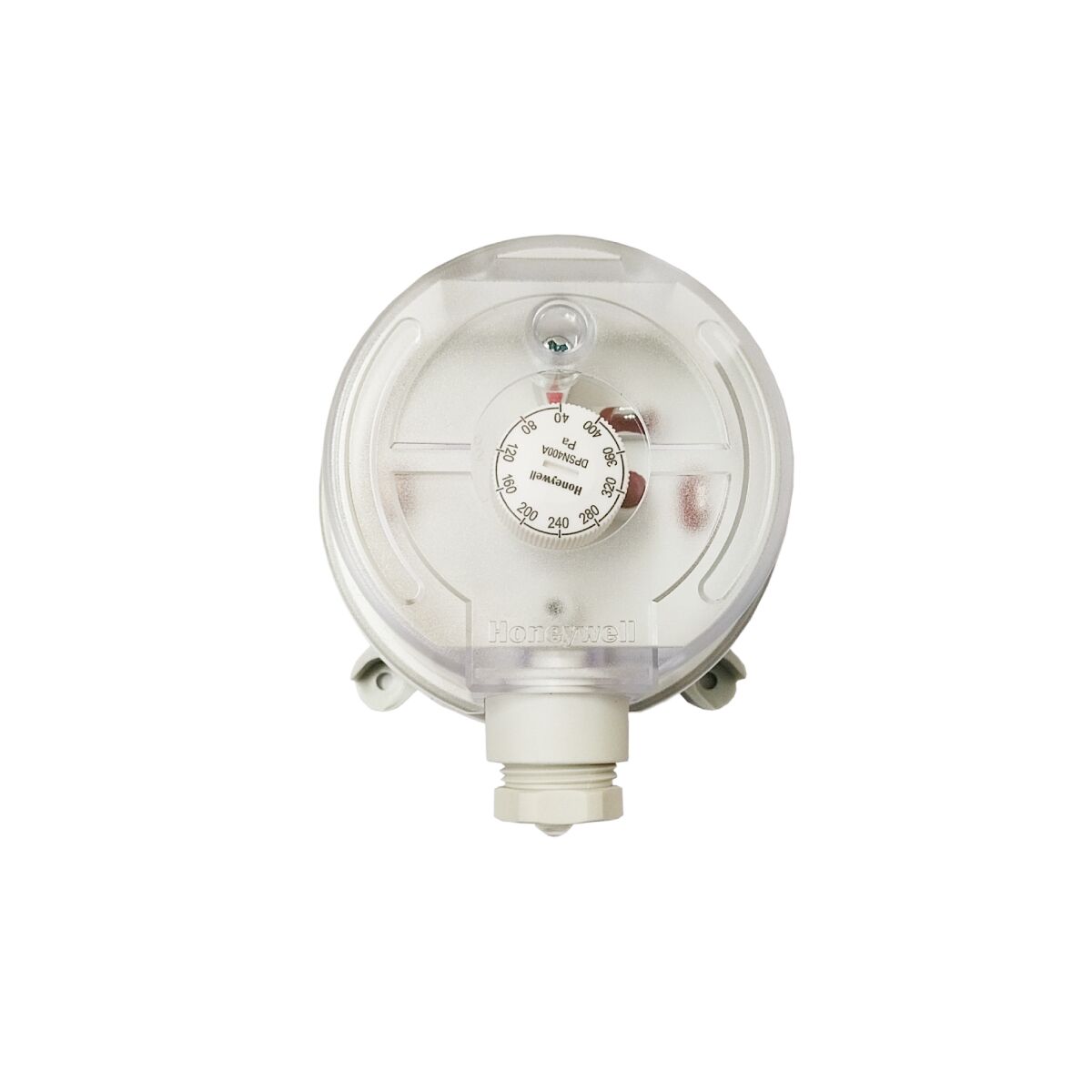

DPSN400A Honeywell Differential Pressure Switch

1,683.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. DPSN400A
Max. allowable working pressure (MAWP) 10000Pa
Accuracy ≤15%
Pressure medium Air, non-flammable gases, non-corrosive gases
Pressure connections 2× plastic tubes, outside diameter: 6.0 mm
Switching capacity 1.5A, (0.4A)/250VAC
Mechanical lifecycle >1 million cycles
Allowable working temp -20°C to +85°C
Storage temp. -40°C to +85°C
Electrical connections AMP connectors or screw terminals
Membrane material Silicone
Conduit entry CM-M20 x 1.5
Protection class IP54
Certificates CE
Included accessories 2× Plastic tube
5× Screw
2m PVC pressure hose
L-shaped mounting bracket
Differential Pressure Range 40-400Pa
Switching Pressure Difference (Hysteresis) 20Pa

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell DPSN400A Differential Pressure Switch

Description

The DPSN400A  Differential Pressure Switch , Honeywell DPSN Series Air Differential Pressure Switch can be used to monitor the status of filters, fans, and air flow in air ducts. A knob is included on the top of the pressure switch so the pressure value of the application under monitoring can be set within the range as such accuracy will be enhanced.

  Special Features

  • Various ranges available
  • Long life cycle
  • Easy to install
