₹5,633.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | DPS500 |
| Max. operating pressure | 10 kPa |
| Pressure media | air, non-flammable gases, and non-aggressive gases |
| Pressure connections | two plastic tubes, outside diameter: 6.0 mm |
| Switching capacity | 1.5 A, (0.4) /250 Vac |
| Electrical connections | AMP connectors, 6.3 x 0.8, DIN 46244 or screw terminals |
| Conduit entry | M20x1.5 |
| Protection class | IP 54 |
| Medium/ambient temp. | -20…+85 °C |
| Storage temperature | -40…+85 °C |
| Membrane material | Silicone |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

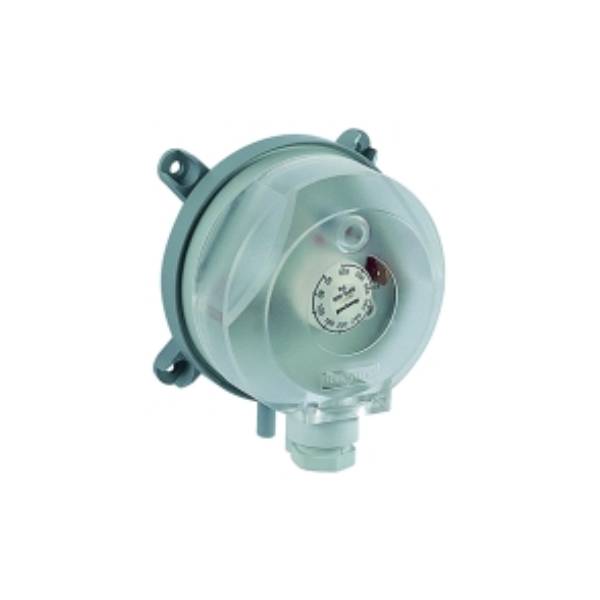

DPS500 Honeywell Differential Pressure Switch
APPLICATION
Differential pressure switches e.g. for monitoring filter, fan,
fire damper, or air flow status of air handling systems.
BENEFITS
Switching-point easily adjustable with scale in Pascal;
Direction of M20x1.5 conduit entry can be rotated in steps
of 120°;
Only one screw needed for housing cover.
