CSCA0200A000B15B01 Honeywell Current Sensor

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. CSCA0200A000B15B01
Nominal output voltage at IPN 4 V ± 1 %
Supply voltage ±15 Vdc ± 5 %
Supply current 17 mA typ.
Accuracy at IPN < ±2 % of IPN
Linearity 2 < ±1 %
Zero current offset < ±20 mV
Residual offset after IPN < ±20 mV
Thermal drift of offset < ±3 mV/°C @ IPN = 50 A
< ±1.5 mV/°C @ IPN = 100 A to 600 A
Thermal drift of gain < ±4 mV/°C
Response time 3 3 µs to 7 µs
di/dt accuracy followed > 50A/µs
Bandwidth 50 kHz dc
Isolation voltage 3 kV, 50 Hz, 60 sec
Rated insulation voltage 849 V reinforced
Output resistance > 10 kOhm
Ambient operating temperature -10 °C to 80 °C [14 °F to 176 °F]
Ambient storage temperature -25 °C to 85 °C [-13 °F to 185 °F]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Category: Tags:

Description

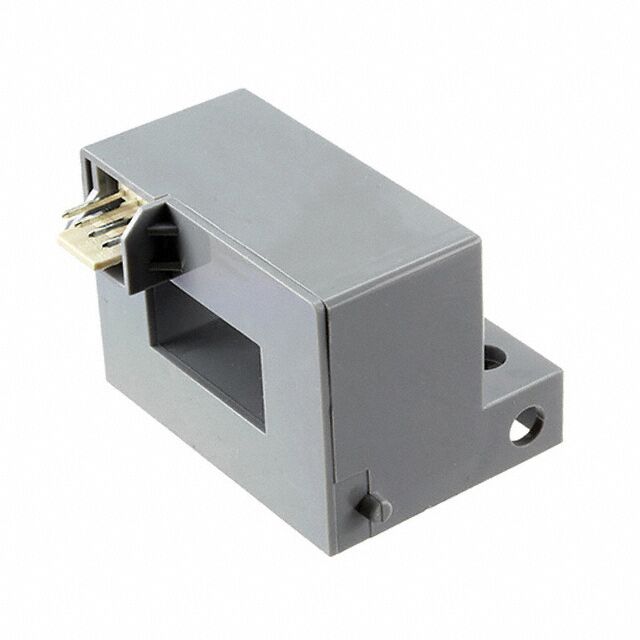

CSCA0200A000B15B01 Honeywell Current Sensor

The CSCA-A Series of open-loop current sensors are based on the principles of the Hall-effect wherein a Hall-effect device (HED) produces an output voltage linearly related to the amplitude and phase of a magnetic field applied to it. Current flowing through a primary conductor generates a rotating magnetic field around the conductor. This field is collector by a core of magnetically sensitive material and concentrated in the gap in this core. The HED is located in this core gap. Therefore, the HED output is directly proportional to the amplitude and phase of the primary current. The HED output is trimmed for gain and offset calibration such that the CSCA-A Series sensor provides a predefined output sensitivity versus primary current.
