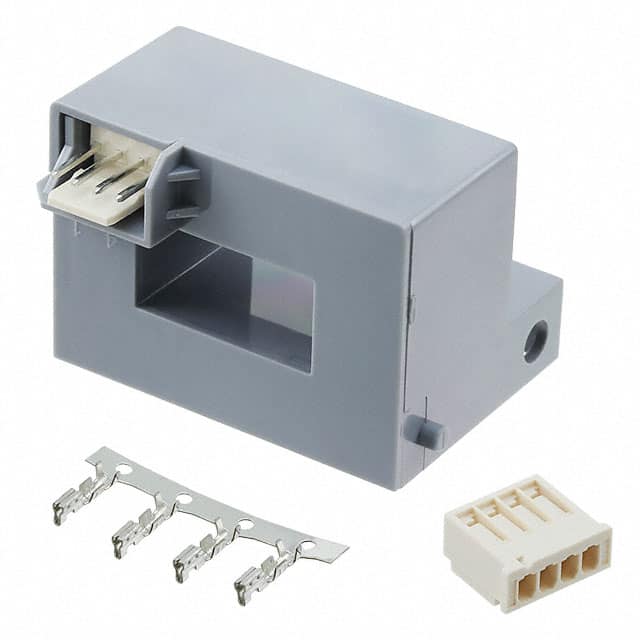

CSCA0100A000B15B01 Honeywell Current Sensor

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. CSCA0100A000B15B01
Nominal output voltage 4 V ± 1
Supply voltage ±15 Vdc ± 5
Supply current 17 mA typ.
Accuracy < ±2 %
Linearity < ±1 %
Zero current offset < ±20 mV
Response time 3 µs to 7 µs
Bandwidth 50 kHz dc
Rated insulation voltage 849 V reinforced
Ambient operating temperature -10 °C to 80 °C
Ambient storage temperature -25 °C to 85 °C

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell 1HS1 Hermetically Sealed Micro Switch

Description

The Honeywell Current sensor CSCA-A Series of open-loop current sensors are based on the principles of the Hall-effect wherein a Hall-effect device (HED) produces an output voltage linearly related to the amplitude and phase of a magnetic field applied to it. Current flowing through a primary conductor generates a rotating magnetic field around the conductor. This field is collector by a core of magnetically sensitive material and concentrated in the gap in this core. The HED is located in this core gap. Therefore, the HED output is directly proportional to the amplitude and phase of the primary current. The HED output is trimmed for gain and offset calibration such that the CSCA-A Series sensor provides a predefined output sensitivity versus primary current.

Features

• Measures ac, dc and impulse currents
• Competitive cost/performance ratio
• Low power consumption
• Compact size
• High level of electrical isolation between primary and
secondary circuits
• Large primary aperture
• RoHs compliant
• CE, UL approvals (pending)
