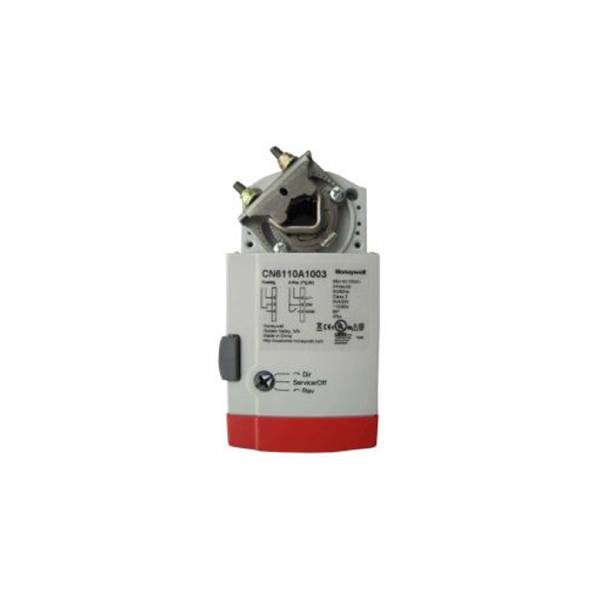

CN6110A1003 Honeywell Damper Actuator

Available on order

8,151.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. CN6110A1003
Type Damper Actuator
Supply voltage 24 Vac/dc -15%/+20%, 50/60 Hz
Nominal voltage 24 Vac/dc, 50/60 Hz
Power consumption 5 VA / 2 W
Ambient Temperature Operating Temperature: 20…+60 °C

Storage Temperature: -30…+80 °C

Ambient humidity 5…95%, non-condensing
Protection standard IP54
Full strokes 60000
Mounting Round damper shaft :- 3/8 in…5/8 in.

Square damper shaft :- 1/4 in…1/2 in.; 45° steps

Shaft length :- min. 1-5/8 in.

Runtime for 90° 90 sec (dc / 60 Hz ac)
Rotation stroke 95° + 3°
Weight (without cables) 1 lbs
Certification CE

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell CN4610A1001 Damper Actuator

Description

CN6110A1003 Honeywell Damper Actuator  . This non-spring return direct-coupled damper actuator provides floating and two-position control for:
• air dampers,
• VAV units,
• air handlers,
• ventilation flaps,
• louvers, and
• reliable control for air damper applications with up to 10sq ft / 44 lb-in. (5 Nm) and 20 sq ft / 88 lb-in. (10 Nm) (seal- less damper blades; air friction-dependent).

FEATURES
• Declutch for manual adjustment
• Adjustable mechanical end limits
• Removable access cover for direct wiring
• Mountable in any orientation
• Rotation direction and service/OFF switch

10Nm, 230Vac, floating control, non-spring return, no feedback and without aux. Switch
