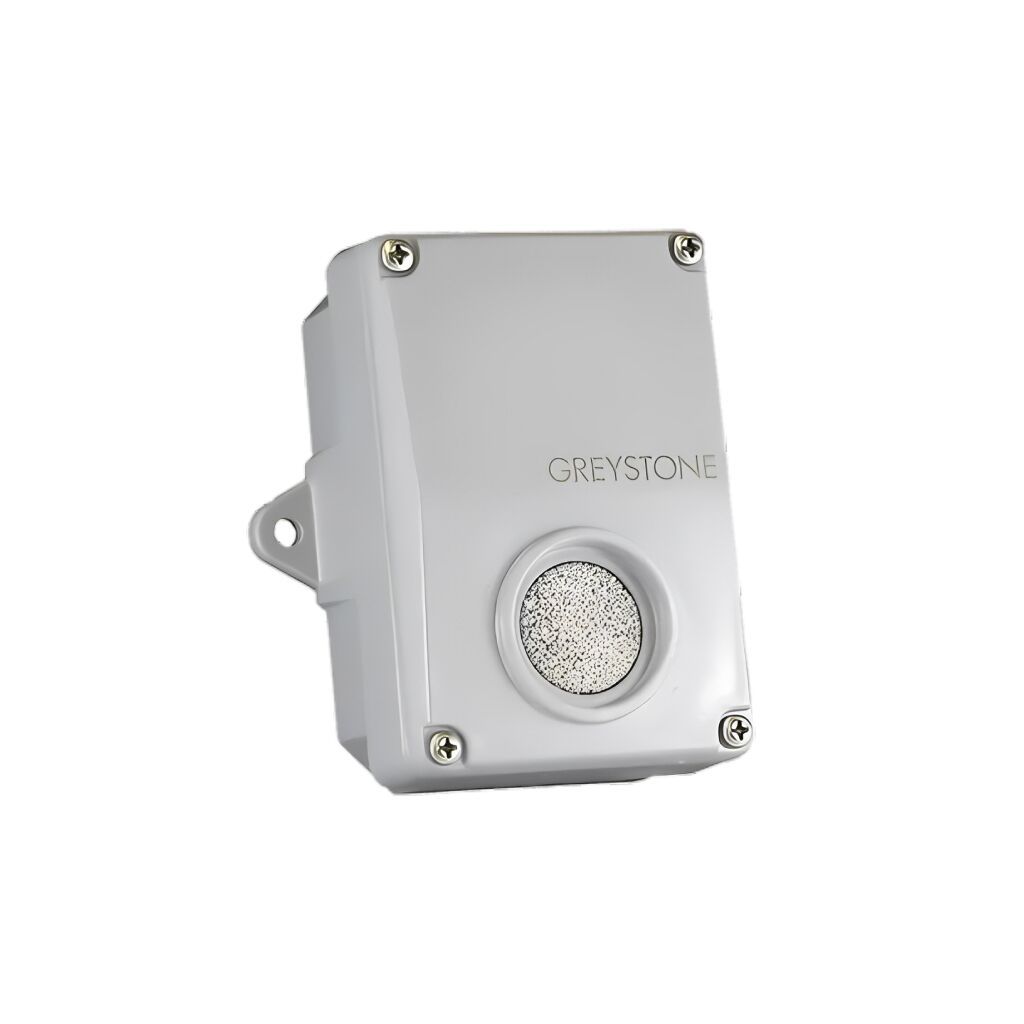

CMD5B1000 CO Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
MEASUREMENT	Electrochemical
SAMPLE METHOD	Diffusion
MEASUREMENT RANGE	Analog: 0-300 ppm Modbus: 0-500 ppm
ACCURACY	±5 ppm or ±5% of reading (whichever is greater) 0 to 50°C (32 to 122°F), 15 to 95 %RH
OPERATING CONDITIONS	-20 to 50°C (-4 to 122°F), 15 to 90 %RH, 0.9-1.1 atm
STABILITY	<5% signal loss/year
RESPONSE TIME	<35 seconds for 90% step change
LIFE EXPECTANCY	7 years in air
TYPICAL COVERAGE AREA	700m2 (7500ft2 ) or 15m (50ft) radius
WIRING CONNECTIONS	Screw terminal block (14 to 22 AWG)
ENCLOSURE	Polycarbonate or ABS, UL94-V0, IP65 (NEMA 4X)
ENCLOSURE DIMENSIONS	71mm W x 104mm H x 48mm D (2.8” x 4.1” x 1.9”)
COUNTRY OF ORIGIN	Canada
AGENCY APPROVALS	Sensor is UL Recognized for ASNI/UL-2034 and UL-2075, E240671

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

CMD5B1000 CO Sensor uses an electrochemical sensor to monitor the carbon monoxide level and outputs a factory calibrated 4-20 mA, 0-10 Vdc, or Modbus signal. Optionally, the device may be configured with an alarm relay.

TYPICAL INSTALLATION

The enclosure should be mounted on a flat surface 1-1.5 m (3-5’) from the floor of the area to be controlled. Do not mount the sensor near doors, opening windows, supply air diffusers or other known air disturbances. Avoid areas with vibrations or rapid temperature changes.
