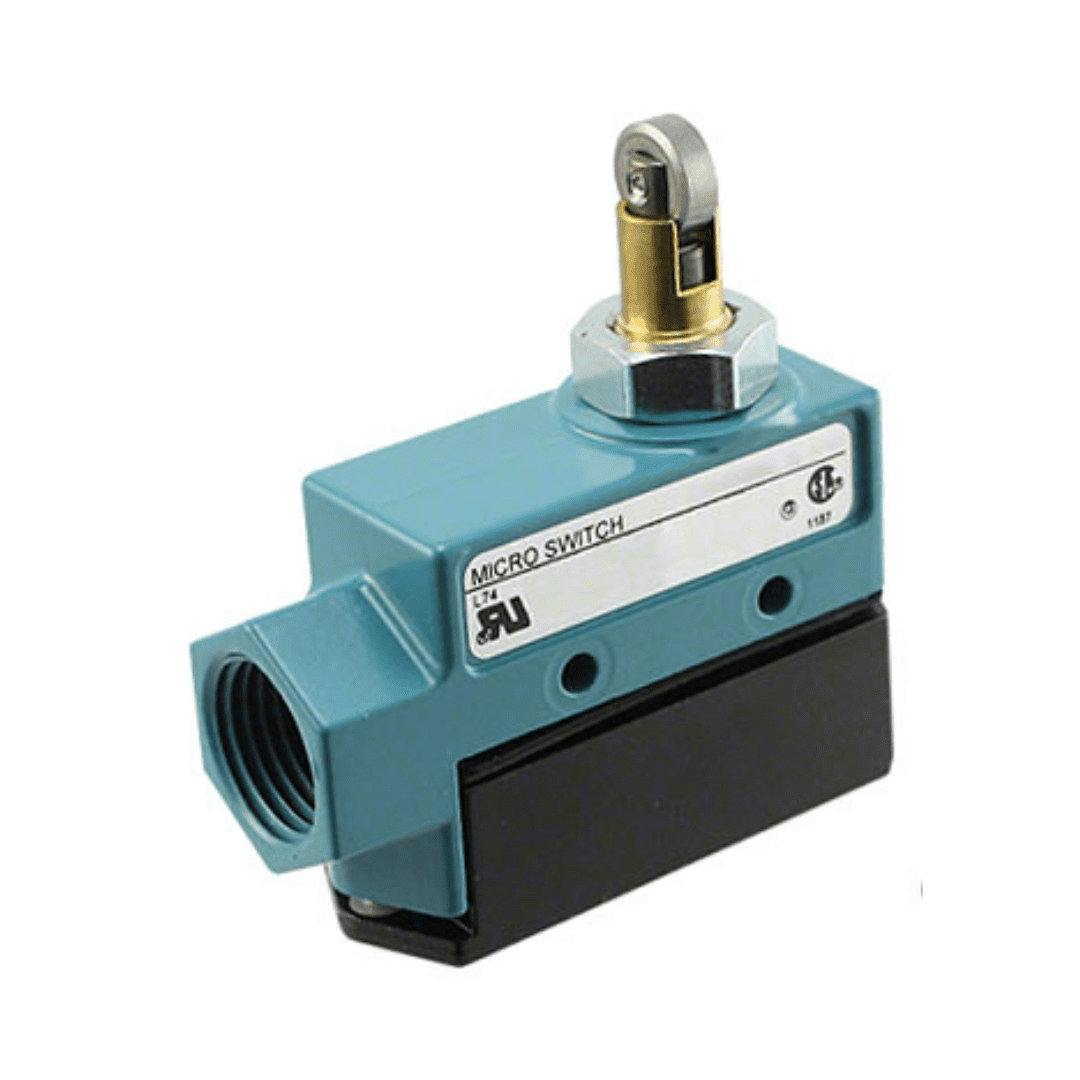

BZE6-2RQ81 Honeywell Limit Switch

Product Details:

Product Description
Brand Honeywell
Model No.
BZE6-2RQ81
Type Limit Switch
Actuators top pin plunger (with and without boot seal)
top roller plunger, parallel with long axis of switch (with and without boot seal)
cross roller plunger, perpendicular with long axis of switch (with and without boot seal)
manually operated (with boot seal)
roller arm, adjustable (with and without boot seal)
one-way roller lever (with boot seal)
low-force rod lever (with and without boot seal)
wobble (with boot seal)
manual reset switches: top pin plunger, top roller plunger, adjustable roller arm, wobble
Housing material electrostatic epoxy coated zinc die-cast
Termination see table 2 below
Sealing actuator with boot seal: NEMA 1, 3, 4, IP66
actuator without seal boot: NEMA 1, IP40
Switching options SPDT (snap-action contacts, 1NO/1NC)
SPDT-DB (double break snap-action contacts, 1NO/1NC)
DPDT (snap-action contacts, 2NO/2NC)
Mechanical endurance up to five million cycles for BZx6 and BMx6 switches; up to two million cycles for DTx6 switches
Electrical endurance up to 50K cycles at full rated load
Operating temperature -32 °C to 71 °C [-25 °F to 160 °F] (standard)
-40 °C to 71 °C [-40 °F to 160 °F] (optional low temperature)
Agency approvals UL, CSA, CE, UKCA

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Categories: , Tags:

Description

BZE6-2RQ81 Honeywell Limit Switch

Honeywell MICRO SWITCH E6/V6 Series medium-duty limit switches are designed for a wide variety of indoor and outdoor applications. Typical applications include equipment for commercial, industrial, transportation, and agriculture industries. The electrostatic applied epoxy coating to the zinc housings enhance the durability of the product in most environments. The E6/V6 family of switches incorporates the Honeywell MICRO SWITCH BZ switch element which has the reliable snap spring mechanism with more than 60 years of proven service. The sealed (actuators with boots) E6/V6 Series switches are preferred for applications where there could be exposure to liquid and/or particulate environments. The general purpose (actuators without boot seals) E6/V6 Series switches are ideal for applications where there will not be exposure to liquid or dust environments.
