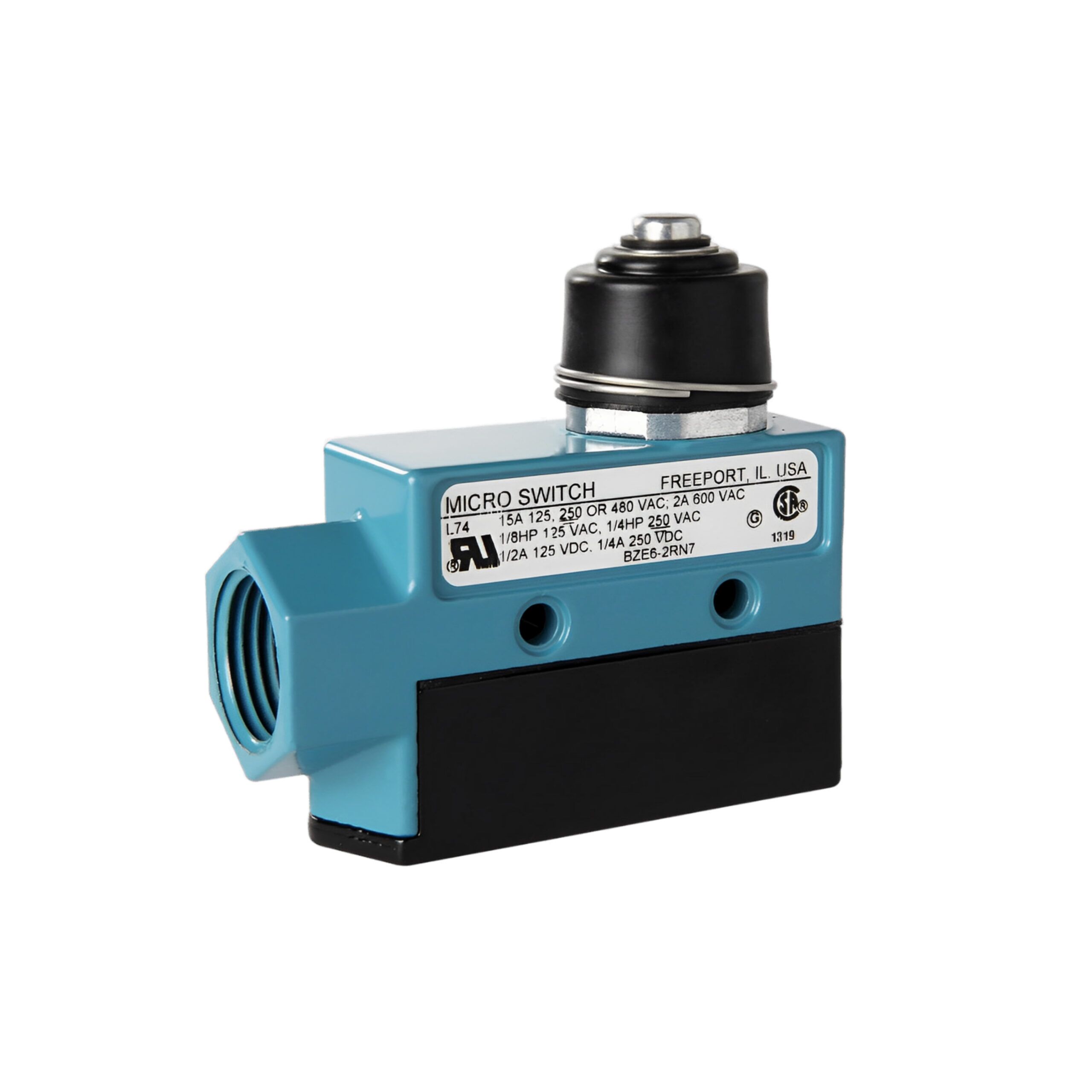

BZE6-2RN Honeywell Limit Switch

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
BRAND Honeywell
MODEL NO. BZE6-2RN
Actuators top pin plunger (with and without boot seal)
top roller plunger, parallel with long axis of switch (with and without boot seal)
cross roller plunger, perpendicular with long axis of switch (with and without boot seal)
manually operated (with boot seal)
roller arm, adjustable (with and without boot seal)
one-way roller lever (with boot seal)
low-force rod lever (with and without boot seal)
wobble (with boot seal)
manual reset switches: top pin plunger, top roller plunger, adjustable roller arm, wobble
Housing material electrostatic epoxy coated zinc die-cast
Sealing actuator with boot seal: NEMA 1, 3, 4, IP66
actuator without seal boot: NEMA 1, IP40
Switch type, Circuitry BZ,SPDT
Electrical Rating [page 6] A, 15 A
Operate Force N [oz] 2,50 to 6,67 [9 to 24]
Operate Point mm [in] 43,66 ±0,76 [1.719 ±0.030]
Pretravel mm [in] max. 1,98 [0.078]
Over Travel mm [in] min. 5,56 [0.219]
Differential Travel
mm [in] max.
0,05 [0.002]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell BXINDA4L-1A Flameproof Limit Switch

Description

BZE6-2RN Honeywell Limit Switch

DESCRIPTION
Honeywell BZE6-2RN Limit Switch, MICRO SWITCH E6/V6 Series medium-duty limit switches are designed for a wide variety of indoor and outdoor applications. Typical applications include equipment for commercial, industrial, transportation, and agriculture industries. The electrostatic applied epoxy coating to the zinc housings enhance the durability of the product in most environments. The E6/V6 family of switches incorporates the Honeywell MICRO SWITCH BZ switch element which has the reliable snap-spring mechanism with more than 60 years of proven service.

The sealed (actuators with boots) E6/V6 Series switches are preferred for applications where there could be exposure to liquid and/or particulate environments. The general purpose (actuators without boot seals) E6/V6 Series switches are ideal for applications where there will not be exposure to liquid or dust environments. The compact size of these limit switches permits installation where there is limited space available on equipment. Most SPDT (Single Pole Double Throw) E6/V6 catalog listings are certified to UL, CSA, CE and UKCA while the DPDT (Double Pole Double Throw) E6/V6 catalog listings are certified to UL and CSA.

FEATURES
1. MICRO SWITCH E6/V6 Series switches feature an electrostatic epoxy coated zinc housing for durability in most indoor and outdoor environments, and a wide variety of actuators to solve most application requirements
2. Designed with MICRO SWITCH BZ, BM, or DT basic switches to deliver precise switching of electrical and mechanical operating characteristics
3. High capacity (22 A) available with BME6 Series switch
4. Small footprint with easy access to wiring terminals
5. Available in a configuration suited to the application with variety of actuators, circuitries, connectivities, and mounting options

POTENTIAL APPLICATIONS
Industrial
1. Packaging equipment (balers, door interlocks)
2. Air curtains (control of air movement)
3. Conveyors (diverters, gates)
Transportation
4. Construction machinery and equipment (door and panel interlocks)
5. Rail maintenance equipment (door and panel interlocks, position sensing)
6. Agricultural equipment (grain handling)
