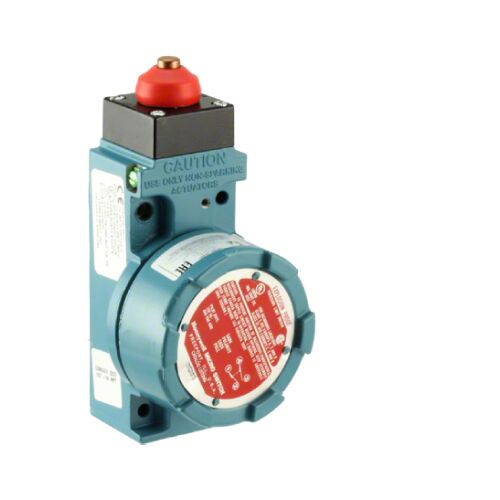

BXC3K Honeywell Flameproof Limit Switch
DESCRIPTION
Honeywell Limit Switch BX4N4L BX/BX2 Series are designed for applications in hazardous or explosive environments requiring a rugged, durable switch virtually anywhere in the world. To comply with explosion-proof switching requirements, the flame path within the switch housing is designed to contain and cool escaping hot gases and fumes that could cause an explosion outside of the switch. Regardless of where the equipment or machinery is designed, built, or installed, BX and BX2 Series products carry global agency coverage.
Honeywell BX4N4L Limit Switch offers two versions of the BX series switch: the standard BX Series features an aluminum housing, while the BX2 series features a 316L stainless steel housing. The stainless steel housing adds additional resistance against corrosion in applications exposed to aggressive, caustic agents, as well as those often present in chemical processing plants, off-shore/near-shore sites, and other hazardous areas. Both products are weather sealed for outdoor use and designed for explosive gas/dust environments. All operating heads of the BX/BX2 Series are field adjustable at 90° increments.
FEATURES
1. Approvals: UL, CSA, ATEX (CE), UKEX (UKCA), IEC Ex, INMETRO (Brazil), NEPSI Ex (China), and KOSHA/KTL (select listings – Korea)
2. Sealed to IP67, NEMA 1, 3, 4, 6, 13
3.Industry-leading breadth of products
4. Two rugged designs are available: aluminum or corrosion-resistant stainless steel head and body
5. A diaphragm seal between head and body provides an extra measure of protection
6.Optional fluorocarbon seals are available for harsh chemical or higher temperature environments
7.Secure head-to-body retention with the head in any one of four positions 90° apart
8. Self-lifting pressure plate terminals saves wiring time.
9. Wide variety of non-sparking actuators, switch options, and head styles for design flexibility
10.Rotary actuated heads are field adjustable for CW actuation, CCW actuation, or both to reduce inventory
11.Choice of silver or gold-plated contacts
POTENTIAL APPLICATIONS
1.Grain elevators
2.Control valves and actuators
3. Off-shore and on-shore drilling
4. Pipelines
5. Petrochemical and chemical plants
6.Water treatment plants
7. Paint booths
8.Conveyors (above-ground)
9. Pulp and paper
10.Hazardous waste handling
