Name: BSBFW16-600U Honeywell Motorized Butterfly Valve
SKU: 68036
Price: 210217.00 INR
Availability: OutOfStock

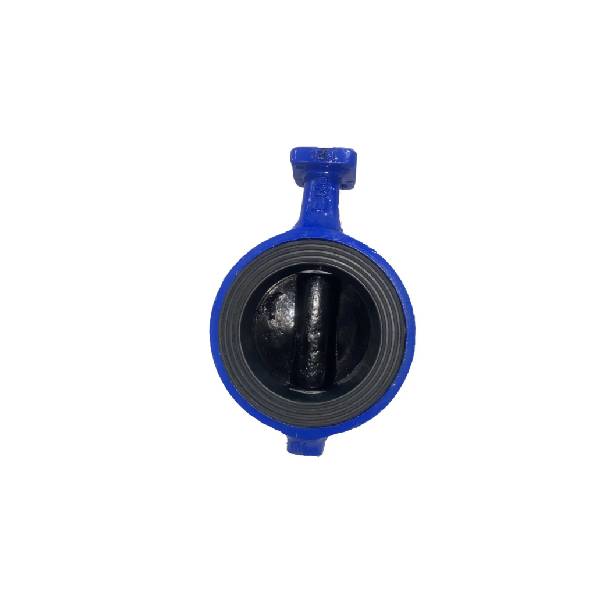

BSBFW16-600U Honeywell Motorized Butterfly Valve

₹210,217.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	BSBFW16-600U
Valve Sizes	Wafer Type, DN50…DN500
Nominal pressure	PN16
Tightness	Bubble tight
Medium Temperature	-10 ~ +110°C Maximum
Body Material	IS: 210, FG 220 CI
Stem Material	ASTM A276, GR SS 410
Disc Material	Epoxy coated ductile iron Disc
Liner Material	EPDM
Valve body	Cast Iron
Pipe Connection	ISO7005-2
Power Supply	220Vac, 50/60 Hz
Medium Type	Chilled and Hot water

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BSBFW16-600U Honeywell Motorized Butterfly Valve

The Honeywell Motorized Butterfly Valve BSBFW Actuated Wafer Type Butterfly Valves are suitable for heating and cooling applications. The BSBFW series is equipped with standard On-Off control quarter-turn electric actuator. The BSBFW series can also provide feedback output signal: Dry contact for On-Off version;

FEATURES
• Wide size range (DN 50…DN500) for PN16 type
• For On-Off Control
• Manual override non-clutch design. Manual operation can be operated without any lever, clutch or brake upon power voltage.
• Irreversible worm gear.
• Visual mechanical position indicator for accurate visual reference of valve position.
• Anti-condensation heater and 2 aux. limit switches on standard model
• Enclosure IP67
