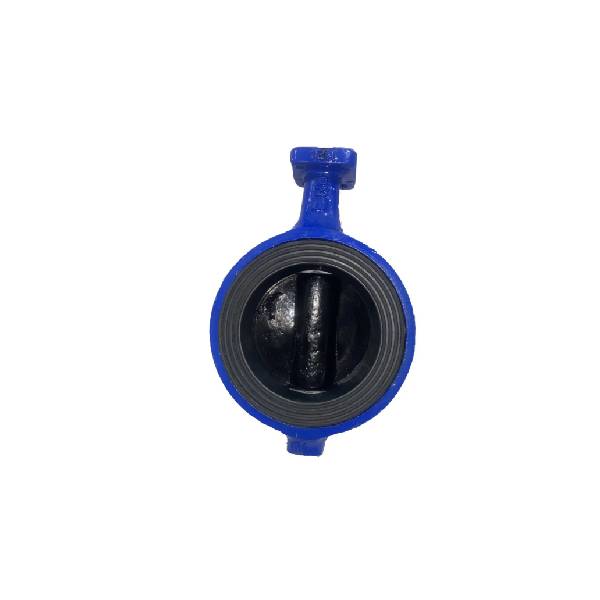

BSBFW16-050U Honeywell Motorized Butterfly Valve

2,998.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. BSBFW16-050U
Valve Sizes Wafer Type, DN50…DN500
Nominal pressure PN16
Tightness Bubble tight
Medium Temperature  -10 ~ +110°C Maximum
Body Material  IS: 210, FG 220 CI
Stem Material  ASTM A276, GR SS 410
Disc Material  Epoxy coated ductile iron Disc
Liner Material EPDM
Valve body Cast Iron
Pipe Connection  ISO7005-2
Power Supply 220Vac, 50/60 Hz
Medium Type Chilled and Hot water

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

BSBFW16-050U Honeywell Motorized Butterfly Valve

The Honeywell Motorized Butterfly Valve BSBFW Actuated Wafer Type Butterfly Valves are suitable for heating and cooling applications. The BSBFW series is equipped with standard On-Off control quarter-turn electric actuator. The BSBFW series can also provide feedback output signal: Dry contact for On-Off version;



FEATURES
• Wide size range (DN 50…DN500) for PN16 type
• For On-Off Control
• Manual override non-clutch design. Manual operation can be operated without any lever, clutch or brake upon power voltage.
• Irreversible worm gear.
• Visual mechanical position indicator for accurate visual reference of valve position.
• Anti-condensation heater and 2 aux. limit switches on standard model
• Enclosure IP67

BSBFW
