BC1000A0110F Honeywell Flame Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	BC1000A0110F
Rated voltage	115V 50/60Hz
Power consumption	5W
Flame Response time	2 ± 1 sec.
Flame sensor	Flame rod or C7012A/G
Safety-start check output	SPST (T3-4)
Flame output	SPST (T2-3)
Allowable ambient temperature	Stand-alone mounting: -20 ~ +60℃ Parallel mounting (2 or more sets) : -20 ~ +45℃
Protection Class	IP00 (mount inside cabinet)
Allowable ambient humidity	Max. 90% RH non condensing
Vibration resistance	0.5G (10 to 150Hz for 1h each in x,y and z directions)
Insulation resistance	More than 50MΩ at DC500V between terminals and ground
Life expectancy	Designed for 10 years of operation or 250.000 cycles under nominal conditions
Terminal ratings	Relay output max 1A @ cosφ=1,0 per terminal
Flame strength	Flame On : > 1V Flame Off : < 0.2V
Size (WxHxD)	42.5 x 90.0 x 95.5 mm (including sub-base)
Weight	Approx. 334g (including sub-base)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

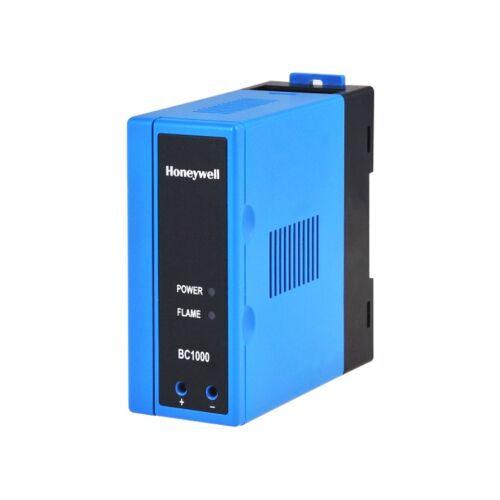

BC1000A0110F Honeywell Flame Switch

The BC1000 (FR models) will operate also with the ex-Satronic IRD810/1010 range of infrared sensors. Note that this combination is NOT CE approved for use on installations that fall under the GAD (Gas Appliances Directive).

FEATURES
1) Compact design.
2) Plug-in wiring sub base for direct panel or DIN RAIL mounting.
3) Safe-start check (SSC) feature prevents operation when abnormal flame condition exists at start-up.
4) LED indication (Power, Flame, SSC) on the front to show operation status (SSC hidden behind the front cover).
5) Screw terminals on the front provide continuous 0~6VDC flame signal strength monitoring.

APPLICATION
The BC1000A/B series is a flame switch for intermittent operation to indicate presence or absence of a flame and to be applied in commercial or industrial burner installations. The BC1000A can also be used as a primary control for manually operated burner systems using a start/stop station.
In addition to the flame sensing functions, the BC1000A/B provides a “Safe Start” function which checks if a flame signal is present when
applying power to the device. If so, the BC1000A/B holds its operation until the flame signal disappears.
The BC1000A/B can be used with a recifying flame rod or all existing non-selfcheck Honeywell “PowerTube” type UV sensors (for intermittent
operation only.
