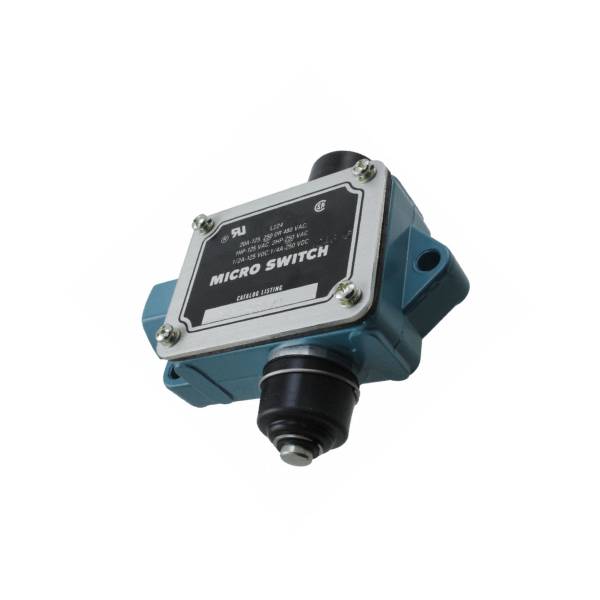

BAF1-3RNX1 Honeywell Limit Switch

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No BAF1-3RNX1
Switch Type Maintained
SPDT
Conduit 1/2 in-14 NPT
Operating temperature -32 °C to 71 °C [-25 °F to 160 °F] (standard)
Housing material Zinc die-cast
Approvals UL, CSA
Actuator Position Right
Electric Rating D
Seal boot Yes
Options with boot seal on
both top and bottom
plungers

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BAF1-3RNX1 Honeywell Limit Switch is high capacity enclosed switches offer elastomer boot on sealed actuator version that protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated “right” or “left,” when looking at the nameplate.

FEATURES

  1. Up to 20 ampere capacity
  2. Cast aluminum housing with three-hole mounting
  3. Right or left-handed (sealed or unsealed) actuators
  4. Cover seal, captive cover screws
  5. Momentary or maintained contact
  6. UL recognized, file #E12252
  7. CSA certified, file #LR41372
  8. Sealed to NEMA 1, 3, 4 and 13 requirements
  9. Grounding screw

POTENTIAL APPLICATIONS

  1. Packaging equipment
  2. Special machinery
  3. Agricultural machinery
  4. Conveyors
  5. Overhead cranes and hoists
