₹6,499.00 Excluding GST
Available in Stock
Product Specifications:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model | AWM5104VN |
| Flow Range | 20 SLPM, N2 calibration (1) |
| Calibration gas | Nitrogen |
| Power consumption | 100 mW |
| Response time | 60 msec |
| Common Mode Pressure | 50 (psi) |
| Temperature range | −20° to +70°C |
| Weight | 60 grams |
| Shock ratings | 100 g peak, 6 msec half-sine (3 drops, each direction of 3 axes) |
| Output @ laser trim point | 5 VDC @ Full Scale Flow |
| Linearity error | ±3.0% Reading (max.) |
| Repeatability & Hysteresis | ±0.5% Reading (max.) |
| Leak rate | 0.1 psi/min. at static condition (max) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

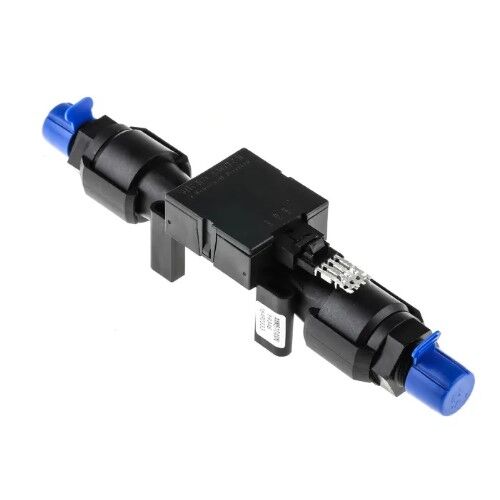

AWM5104VN Honeywell Airflow Sensor
FEATURES
• Linear voltage output
• Venturi design
• Remote mounting capability
• Active laser trimming improves interchange ability
• Separate gas calibration types:
– Ar (argon)
– N2 (nitrogen) or
– CO2 (carbon dioxide)
• In-Line Flow Measurement
• Rugged, Versatile Package
• On-board Signal Conditioning
