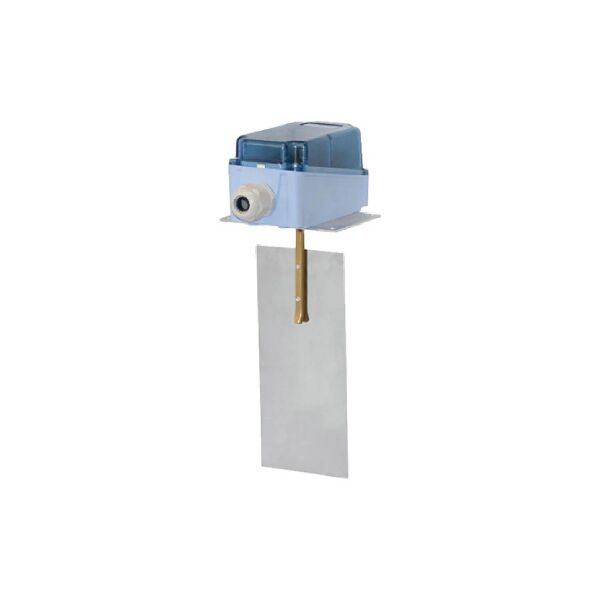

Name: S6040A1003 Honeywell Airflow Switch
SKU: 65217
Price: 10973.00 INR
Availability: OutOfStock

S6040A1003 Honeywell Airflow Switch

Available on order

₹10,973.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	S6040A1003
Flow medium	air
Mounting	vertically through a 20-mm hole in the duct; mount paddle inside
Maximum duct temperature	85 °C
Pressure	0.25 bar
Paddle material	1.4310
Lever	yellow brass
Sensor body	zinc-plated steel
Weight	630 g
Switching capacity	15 (8) A, 24…250 Vac
Lifetime	50000 cycles at nominal load
Internal duct temperature	-40…+85 °C
Accessories	PA1 Paddle set

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

S6040A1003 Honeywell Airflow Switch

FEATURES

Cost-effective flow switches for HVAC applications.
High-capacity, fully-encapsulated NC/NO micro-switch.

SPECIFICATIONS

Switching capacity 15 (8) A, 24…250 Vac
Lifetime 50000 cycles at nominal load
Working temperature -40…+85 °C at 90% rel. humidity,
non-condensing
Internal duct temperature -40…+85 °C
Electrical connection Screw terminal, wire up to 1.5 mm2
cable 6…9 mm
Protection class I according to EN60730
Protection standard IP65 according to EN60529
Housing material ABS base and transparent PC
cover
Accessories PA1 Paddle set
