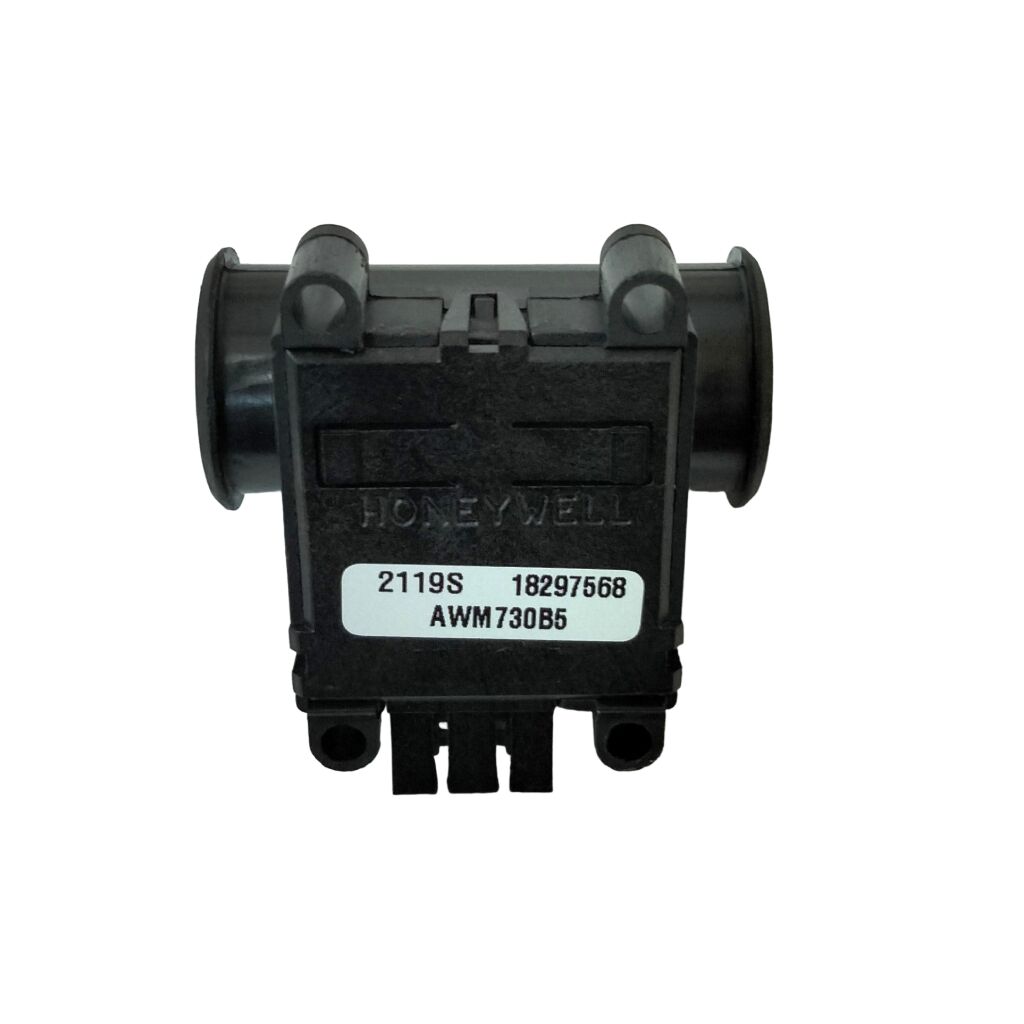

AWM730B5 Honeywell Airflow Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	AWM730B5
Flow range	±300 SLPM
Excitation voltage	5 Vdc ±0.01 Vdc
Power consumption	60 mW
Ratiometricity error	–
Repeatability and hysteresis	±0.035 Vdc typ.
Response time	6 ms typ
Pressure drop at full scale	3,0 mbar \| 300 Pa \| 1.2 inH20 typ.
Overpressure	1034 mbar \| 103 kPa \| 15 psi max.
Operating Temperature	5 °C to 60 °C [41 °F to 140 °F]
Storage Temperature	-40 °C to 90 °C [-40 °F to 194 °F]
Weight	23,2 g
Connector	snap-in AMP 103956-3 provided with sensor
Power supply	9.0 Vdc min./16.0 Vdc max.
Calibration Gas	Air

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

AWM730B5 Honeywell Airflow Sensor ,AWM700 Series, Compensated/Amplified Airflow Sensors provide in-line flow measurement with a specially designed bypass flow housing.

AWM720P1 Ventilator Airflow Sensor measure flow as high as 300 standard liters per minute (SLPM) while inducing a typical pressure drop of 1 inH2O. The AWM700 has a high flow range capability in a small package, as well as a 6 ms response time. These sensors require a 10 Vdc supply, but consume only 60 mW of power. The compact plastic package withstands overpressures of 1720 mbar | 172 kPa | 25 psi without compromising performance. The snap-in AMP-compatible connector provides reliable connection. The AWM700 Series provides a combination of time-proven reliability, high accuracy, and precision operating characteristics. This inherent accuracy over life reduces need for recalibration. AWM700 sensor circuitry performs amplification and temperature compensation. The AWM720P1 and AWM730B5 were developed primarily for the medical ventilation market and meet the high performance requirements of many medical and analytical instrumentation applications.
