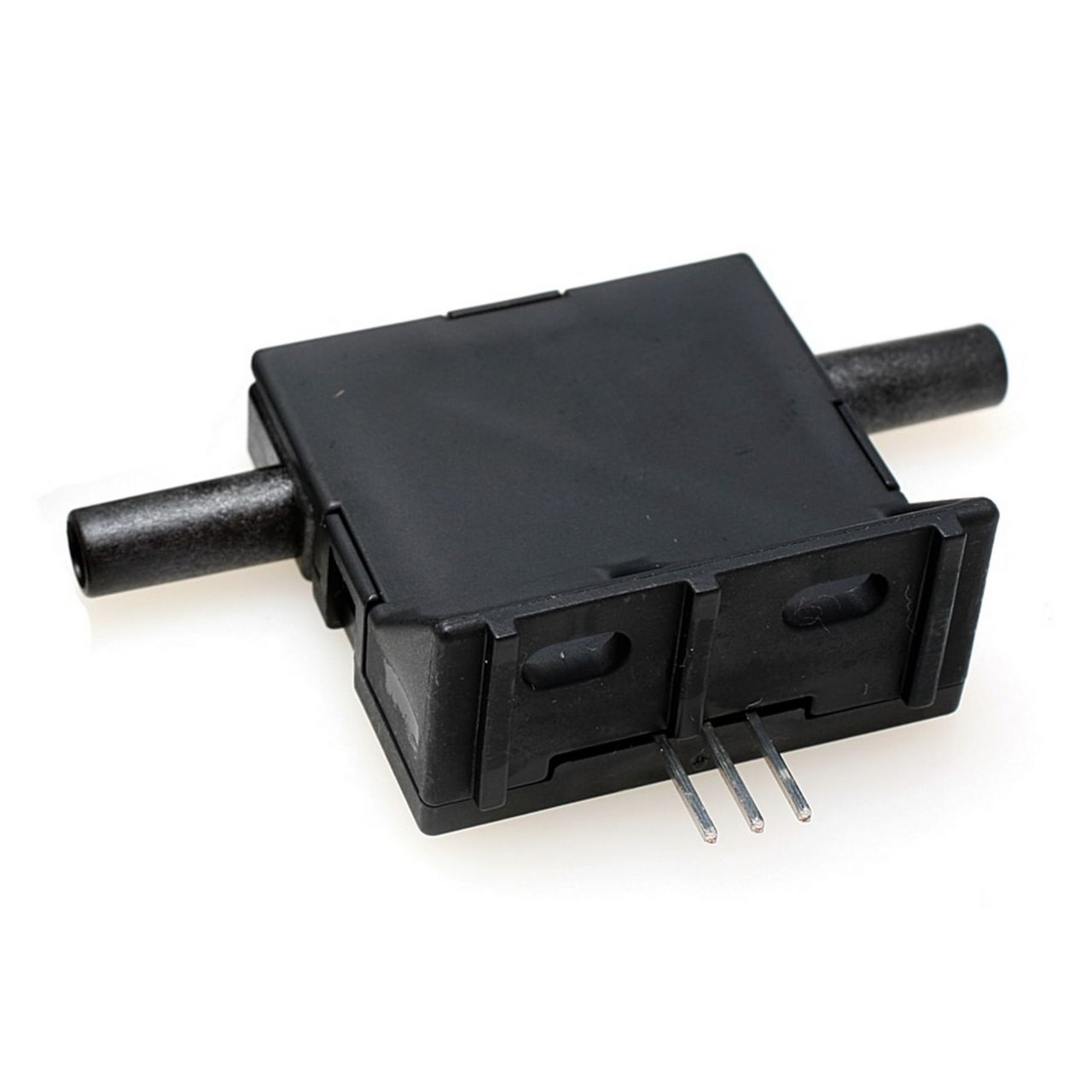

Honeywell AWM3100V Airflow Sensor

AWM3100V Honeywell Airflow Sensor

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model no. AWM3100V
Recommended excitation 10 ± 0.01 Vdc
Power consumption 50 mW
Output voltage @ laser trim point 5.00 Vdc @ 200 sccm
Output voltage shift
-25 °C to 25 °C [-13 °F to 77 °F]
25 °C to 85 °C [77 °F to 185 °F]		 -5% Reading
+6% Reading
Repeatability and hysteresis, max ± 0.50% reading
Maximum Response Time 3.0 msec
Operating Temperature range -25 °to 85 °C
[-13 °F to 77 °F]
Storage Temperature range -40 °C to 90 °C

[-40 °F to 194 °F]
Termination
(2,54 mm [0.100 in] centers)		 0,635 mm
[0.025 in] square
Weight 10,8 g [0.381 oz]
Shock rating (5 drops, ea. of 6
axes)		 100 g peak
Maximum Overpressure 25 psi

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Category: Tags:

Description

AWM3100V Honeywell Airflow Sensors

AWM3000 Series Microbridge Mass Airflow Sensors

AWM3000 Series Microbridge Mass Airflow Sensors operate on the theory that airflow directed across the surface of a sensing element
causes heat transfer. Output voltage varies in proportion to the mass of air or other gas flowing through a given sensor’s inlet and outlet ports.
Current sink/source. Maximum current ratings are 10 mA sinking and 20 mA sourcing, governed by an LM224 operational amplifier in the final stage of the instrumentation amplifier..

MEDIA CONTAMINATION
Media flowing through the sensor should be free of condensing moisture and particulate contaminants. An inexpensive 5 micron filter
upstream of the sensing element substantially reduces the risk of damage due to contaminants.
