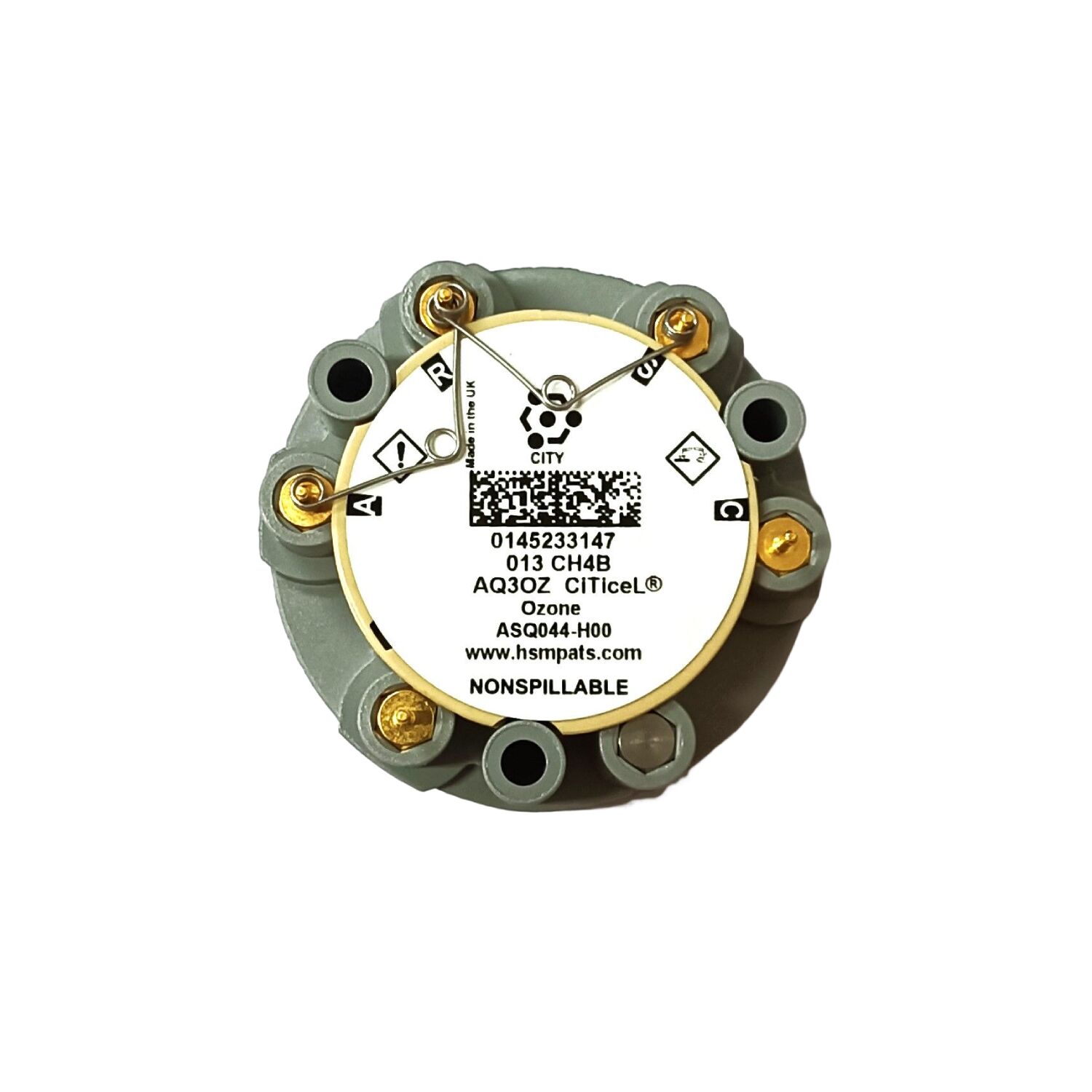

AQ3OZ ( ASQ044-H00 ) City Technology Ozone Gas Sensor

Available on order
For Bulk requirement, Kindly click on enquiry now button





Product Details:



Product Description
Brand City Technology
Model Number AQ3OZ ( ASQ044-H00 )
Technology 4-electrode electrochemical
Maximum Overload without board: 5 ppm O3
with board: 1.5 ppm O3
Response Time < 120 seconds
Resolution 10 ppb when used with recommended
circuitry
Power Supply Required 5 Vdc (with board)
Power Consumption 350 mA @ 5 Vdc (with board)
Weight without board: < 22 g
with board: < 30 g
Contact Material Mild steel with gold flash-over nickel plate
Operating Temperature Range -30°C to 50°C
Warranty 12 Months

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

AQ3OZ ( ASQ044-H00 ) City Technology Ozone Gas Sensor
