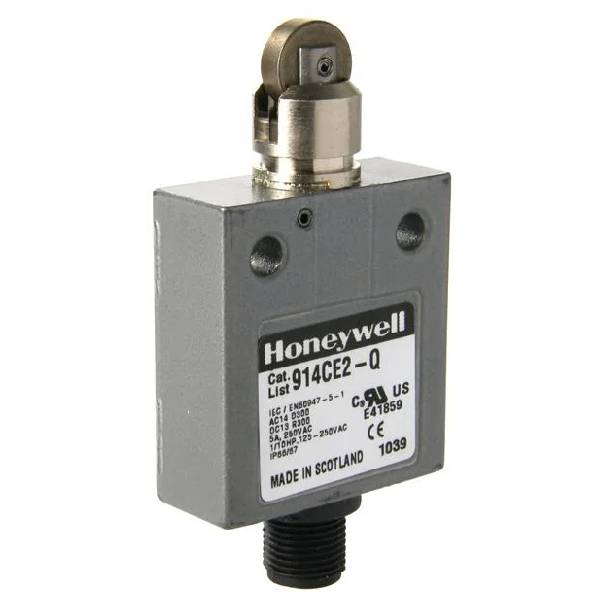

914CE2-Q Honeywell Limit Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	914CE2-Q
Description	compact enclosed limit switch
Actuator Type	Top roller plunger, parallel
Mechanical life	3 feet up to 10 million (up to 5 million for wobbles) cycles
Switching options	SPDT, snap action contacts (1NC/1NO), Form C
Sealing	IP66, IP67, IP68*; NEMA 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13
Thermal current	1 A
Rated insulation voltage (Ui)	250 V
Rated impulse withstand voltage (Uimp)	1.5 kV
Short circuit protection device (SCPD)	Quick blow fuse suitable for rated current of switch
Pollution degree	3
Min. actuation speed	0.003 m/s
Max. actuation speed	0.1 m/s
Max. actuation frequency	ac – 200 Hz; dc – 20 Hz
Shock	50 g – IEC 60068-2-27
Vibration	10 g – IEC 60068-2-6
Approvals	cURus, CE, UKCA

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

914CE2-Q Honeywell Limit Switch

DESCRIPTION
All MICRO SWITCH 914CE Series miniature precision switches incorporate fluorocarbon diaphragm sealing to provide reliable protection, meeting NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13, as well as IP66, IP67, and IP68 requirements. Versions with a boot seal also meet NEMA 12 requirements (dust, falling dirt, liquid media with solid contaminates). The cable or connector and basic switch terminals are encapsulated in an epoxy sealant, offering excellent resistance in harsh environments. For low temperature applications (down to -40 °C, -40 °F), CE Series switches can be supplied with low temperature seals and lubricant.

The CE Series switches are rugged and versatile switches which can be applied indoors in many harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including pin plungers, roller plungers, side rotary, multi-directional wire, and manually operated. The switches are also available with the industry standard, M12 micro-change 4-pin connector.
MICRO SWITCH 914CE products meet North American, cURus standards, as well as European CE and United Kingdom UKC requirements.

FEATURES
• Rugged, miniature construction means minimal real estate on equipment
• NEMA 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13, and IP66/67/68 environmental sealing
• Pre-leaded (UL cable) or supplied with a M12 four-pin connector
• Wide selection of actuators and cable length variations with side and bottom exit cable/connector options
• 25 mm mounting centers engineered with a MICRO SWITCH SM switch for consistent, precise actuation
• Well suited for up to 10 million actuation cycles (Up to 5 million actuation cycles for wobble actuators)
• Gang mounting capability to provide a multi-plunger limit switch
• Low temperature variants available for indoor and outdoor applications
• cURus, CE approvals for world-wide use
• UKCA approval for United Kingdom use

POTENTIAL APPLICATIONS
• Machine tools
• Off-road equipment
• Material handling
• Dock locks and dock levelers
• Access and mobility solutions
• Textile machinery
• Robotics
• Packaging equipment
• Commercial appliances
• Print trade machinery
• Agricultural machinery
