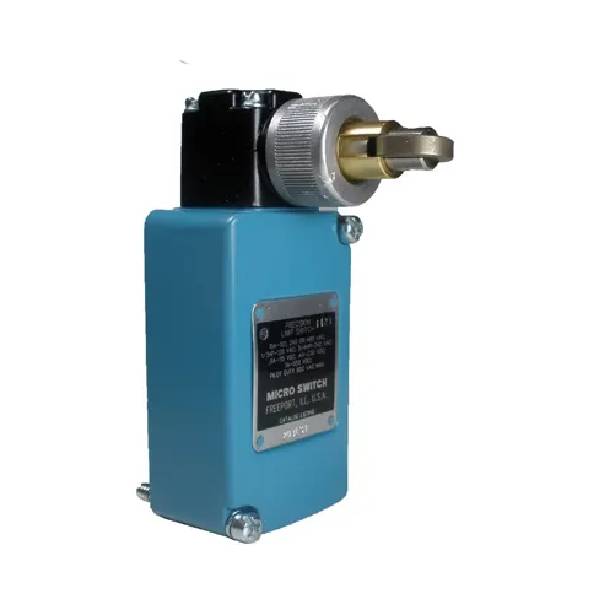

203LS1 Honeywell Limit Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	203LS1
Product type	Honeywell general purpose LS limit switch, compact and plug-in
Acutators	side rotary, side rotary (maintained) top pin plunger, top roller plunger, wobble coil spring, wobble aluminum rod, wobble cat whisker, wobble sst coil spring
Circuitry	single pole double throw (SPDT) double break,
Electrical	10 A (see Table 2
Housing material	compact: epoxy coated zinc die cast plug-in: epoxy coated aluminum die cast
Conduit	0.5 – 14 NPT
Housing seal rating	NEMA 1,3,4, 6 and 13
Agency certifications	Compact with –L suffix UL file 12252, CSA file 57325

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

203LS1 Honeywell Limit Switch

DESCRIPTION
Honeywell’s MICRO SWITCH heavy-duty limit switches’ modular construction allows for a wide variety of actuator styles, operating heads, and electrical circuitry options. The plug-in versions greatly reduce downtime on production lines with high actuation rates as replacement of the switch is accomplished in seconds. The base receptacle contains all the wiring and conduit connection while the switching component
with operating head easily assembles to the base and is attached with two screws.
