Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model Number | 1TP201-3 |
| Description | commercial grade rocker switches |
| Housing material | glass-filled thermoplastic nylon 6/6 |
| Sealing | switch chamber sealed from environment |
| Operating temperature | -54 °C to 71 °C [-65 °F to 160 °F] |
| Mounting | two 6-32 internal threads with lead-in and thread locking feature on 46 mm [1.81 in] centers panel cutout 38,4 mm x 23,9 mm [1.51 in x 0.94 in] |
| Switch/button action | 2- or 3-position, maintained or momentary action |
| Circuitry | SPST, SPDT, DPST, DPDT, 4PST, 4PDT |
| Termination | screw (6-32 threads), quick-connect (6,35 mm [0.25 in]), and IWTS |
| Contact material | silver alloy or gold plated |
| Electrical rating (amps) | up to 20 A resistive (see tables below) |
| Approvals/certifications | CE, CSA, UL |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

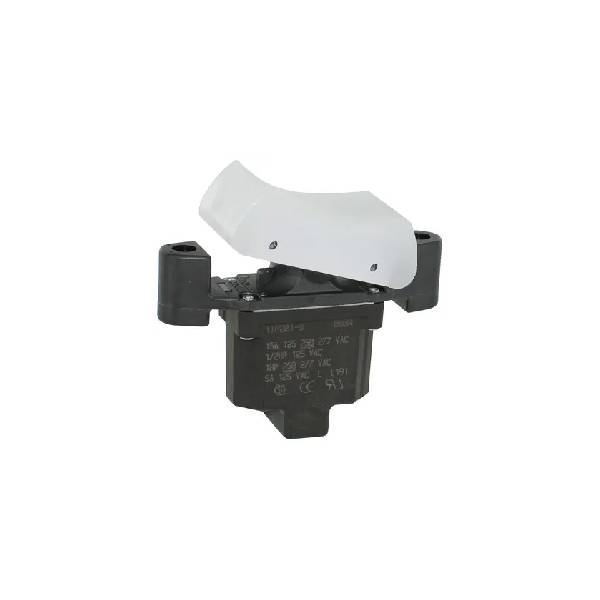

1TP201-3 Honeywell Rocker Switch
FEATURES
