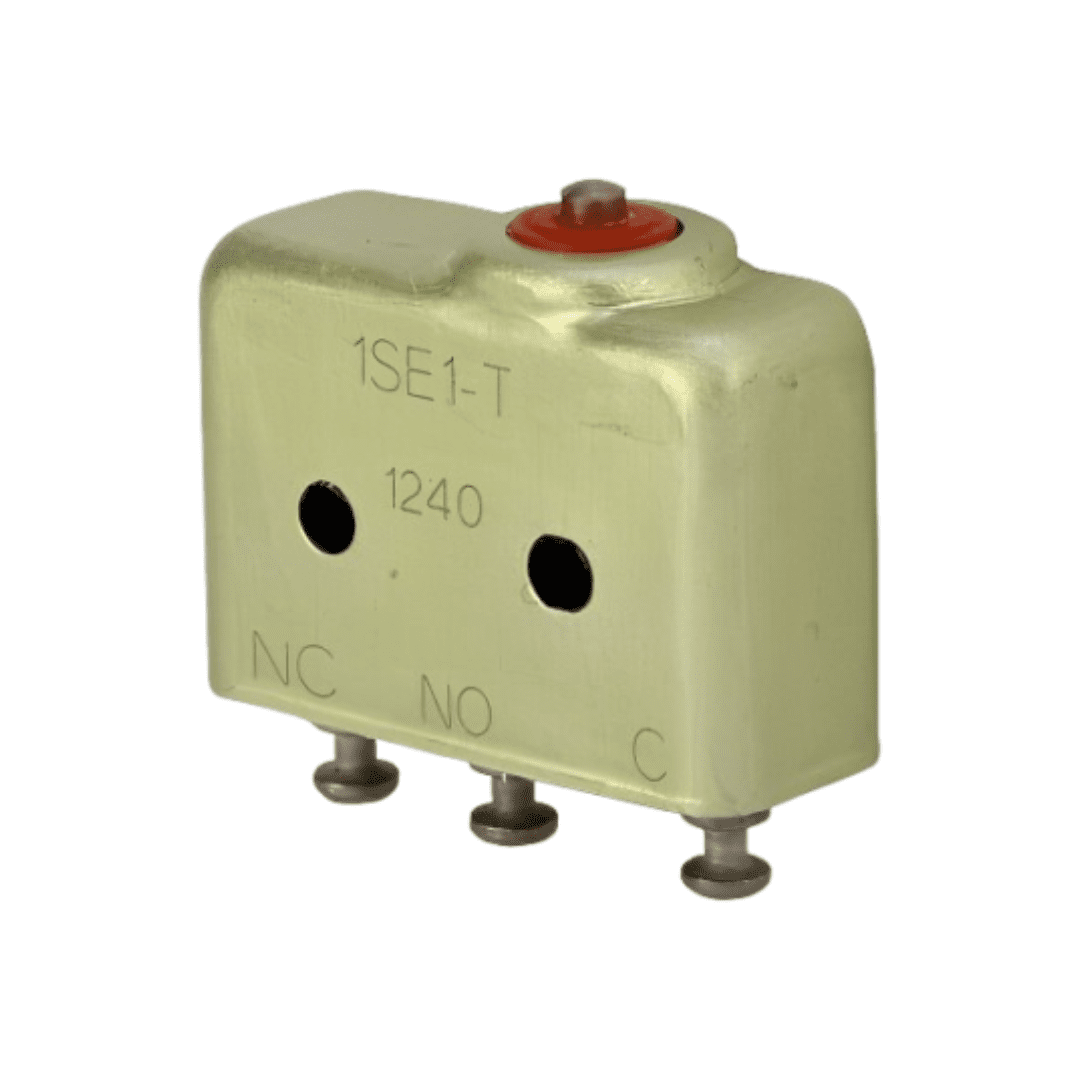

1SE1-T Honeywell Micro Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	1SE1-T
Circuitry	SPST (NC), SPST (NO), SPDT
Housing material	Anodized aluminum
Electrical termination	epoxy sealed leadwire, (0,52 mm² [20 awg]) or epoxy sealed solder pins
Electrical rating	5 A @ 30 Vdc; 5 A @ 250 Vac, 60 Hz
Sealing	Symbol 3 “watertight” per MIL-PRF-8805
Temperature range	-53 °C to 105 °C [-65 °F to 221 °F] (standard) -26 °C to 85 °C [-15 °F to 185 °F] (5SE Series)
Vibration	Grade 2 (15 G) per MIL-PRF-8805
Approvals	UL, CSA
Actuators	Top pin plunger, optional auxiliary actuators available

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

1SE1-T HONEYWELL MICRO SWITCH™ SE Series Miniature Sealed Basic Switches

Honeywell SE miniature sealed basic switches are designed for precise and reliable position indication of critical applications on aircraft and military systems. The applications range from military and commercial aircraft and helicopters to military land vehicles (track and wheeled vehicles). These switches are also suitable for other commercial and industrial applications where a degree of environmental sealing is required. The environmentally sealed SE Series is designed for demanding applications where water and/or particulate contaminant is present along with the potential for a wide range of temperatures. The SE Series incorporates the Honeywell time-proven are qualified satisfying the requirements where a military qualified or compliant switch is required.
