Description

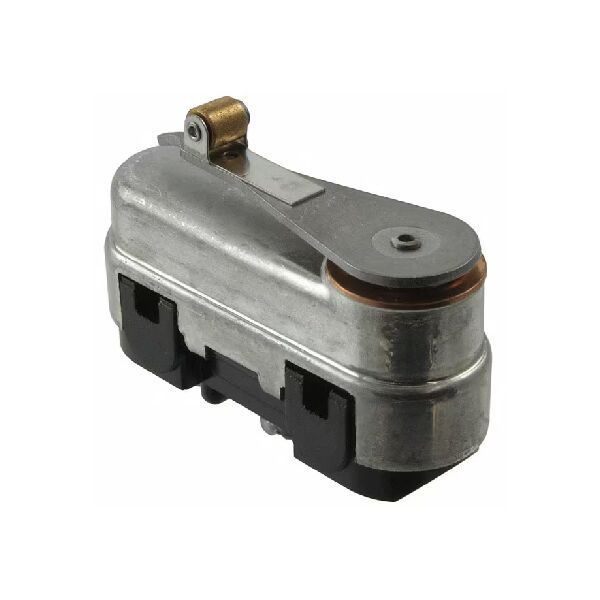

1HS3 Honeywell Hermetically Sealed Micro Switch, When hermetically sealed switches (metal-to-metal and glassto-metal sealing) are a requirement for demanding applications, Honeywell MICRO SWITCH™ HS Series premium large basic switches fulfill the need. 1HS1 Hermetically Sealed Micro Switch, HS Series design incorporates a MIL-PRF-8805 symbol 5 hermetic seal to comply with hermetic seal requirements. HS Series switches are capable of controlling logic level/low energy applications, as well as power-duty switching to solve many applications. With a compact package size, HS Series switches have overall dimensions of 1.96 inch length, 1.18 inch height, and 0.67 inch wide and are suitable for applications where space is limited. In addition to MIL-PRF-8805 qualified HS Series switches, UL and CSA certified HS Series basic switches are available for a wide variety of applications.
VALUE TO CUSTOMERS
The switch mechanism is protected from harmful particle (sand/dust), liquid (water), and gas (corrosive gas and atmospheric pressures) environments by the hermetic seal.
FEATURES
• Select HS catalog listings qualified to MIL-PRF-8805 and/or UL, CSA certified
• Hermetic sealing to MIL-PRF-8805 symbol 5 requirements
• Similar package size as Honeywell MICRO SWITCH™ premium large basic switches with 25,4 mm [1.00 in] mounting centers
• Mounting holes of switch are outside of hermetically sealed switch chamber
• Several different styles of integral actuators and auxiliary actuators
• Electrical connection with #6-32 terminal screws or individual #18 AWG wire leads
• Temperature range from -54 °C to 121 °C [-65 °F to 250 °F] with select catalog listings to 149 °C [300 °F]
